Omoda

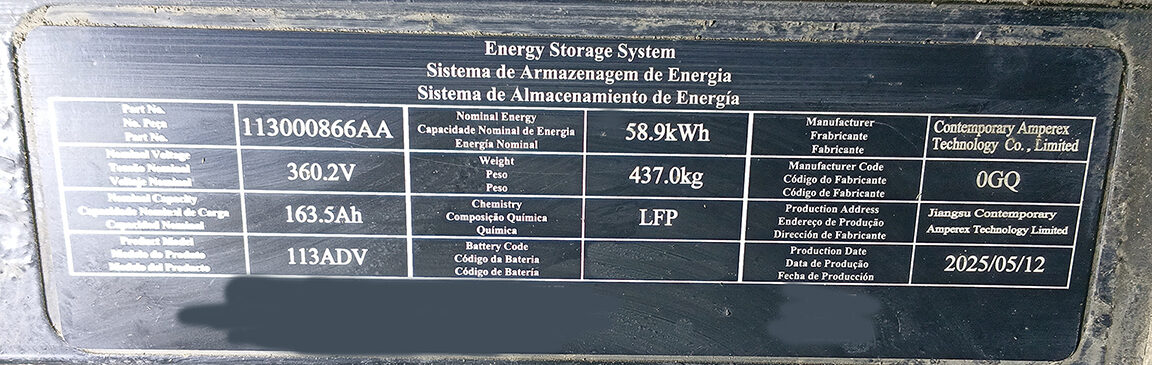

Omoda E5 Noble 2025, 58.9KW Battery is manufactured by CATL

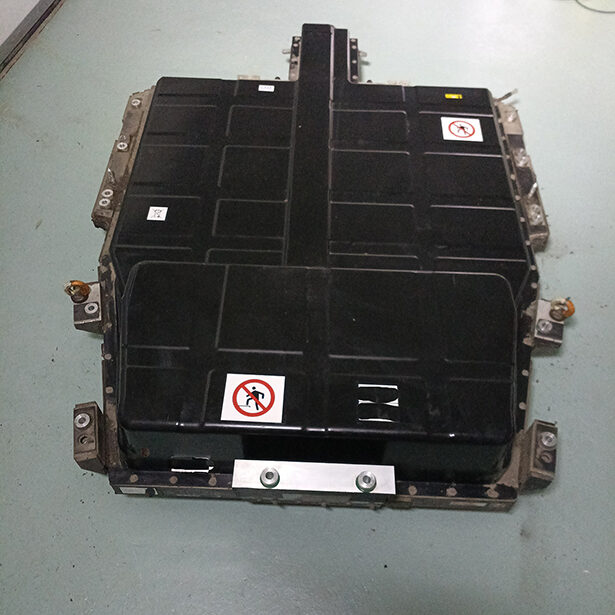

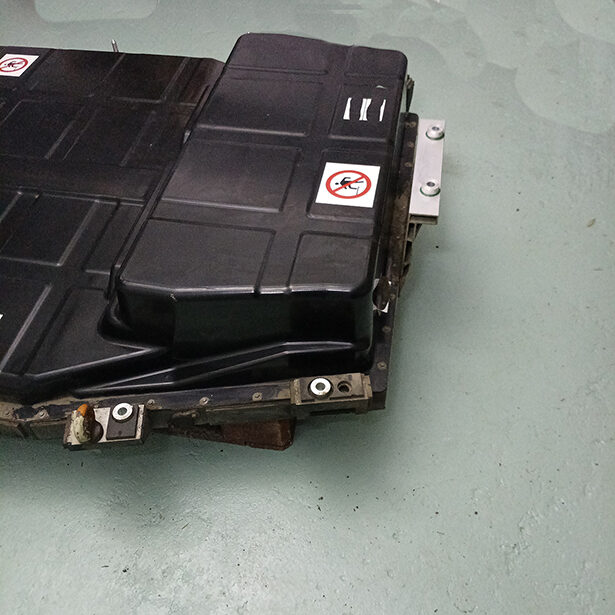

Physical Dimensions~
| Parameter | Value |
|---|---|
| Pack Size (L × W × H) | 1900 × 1370 × 300 mm |
| Weight | 437 kg |
Software configuration~
For this battery type, use the option called "xyz" under the "Battery Protocol" section.
Part numbers~
Part numbers for connectors/cables, along with purchase links to ebay/aliexpress.
| Component | Part Number | Purchase Link |
|---|---|---|
| LV Connector | eBay / AliExpress | |
| HV Connector (A) | 806020673AA | eBay / AliExpress |
| HV Connector (B) | 806020675AA | eBay / AliExpress |
Wiring, Low voltage connector~

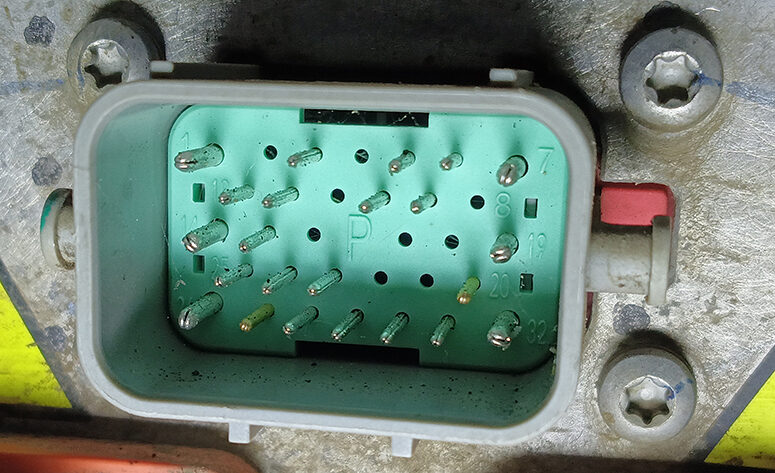

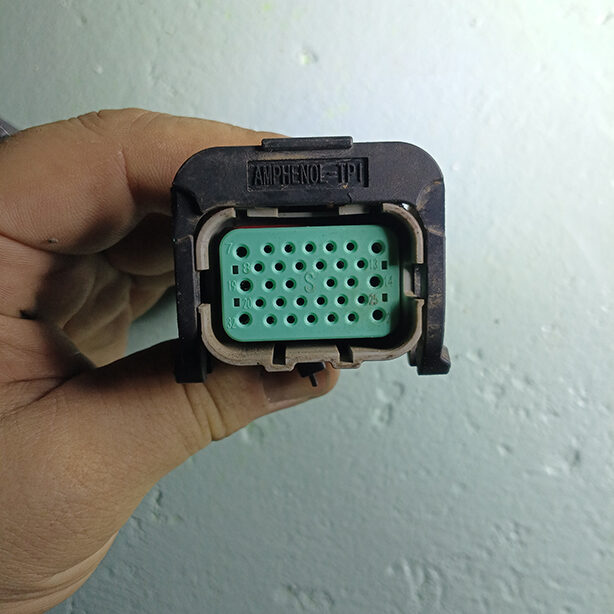

LV Connector is a Amphenol-TPI HC Series (HC18B-S32 2516 326024)
This has the ability 6 Power Pins (13A max) + 26 Signals (5A max) The rear is protected in a (EDPM KR 06) boot that is cable tied closed.
The connection on the battery has following Pins.
| Pin | Output | Colour | Notes |
|---|---|---|---|
| 1: | Blue & Yellow | 1.2mm Power | |
| 3: | Crash In | Solid Blue | |
| 5: | Ground ??? | 0.85mm Black | |
| 6: | DC-Charge CC | Red & White | |
| 7: | Ground ??? | 1.2mm Black | |
| 9: | CAN H | Green & White | Twisted Pair (1) |
| 10: | CAN L | Yellow & Blue | Twisted Pair (1) |
| 12: | Green & Yellow | Twisted Pair (2) | |
| 13: | Purple & Yellow | Twisted Pair (2) | |
| 14: | Blue & White | 1.2mm Power | |
| 15: | A+ Charge wakeup | White & Green | |
| 19: | Ground ??? | 1.2mm Black | |
| 20: | PSS- Air Bag | Blue & Black | Twisted Pair (3) |
| 23: | Not Connected | Not Connected | Pin on battery but no connection |
| 24: | Not Connected | Not Connected | Pin on battery but no connection |
| 25: | Red & Blue | Beware 25 & 28 Same colour wire !! | |
| 26: | White & Red | 1.2mm Power | |
| 27: | PSS+ Air Bag | Red & Black | Twisted Pair (3) |
| 28: | Red & Blue | Beware 25 & 28 Same colour wire !! | |
| 29: | HVIL2 Out | Solid Orange | |
| 30: | HVIL2 IN | Solid Green | |
| 31: | Ground ??? | 0.85mm Black | |
| 32: | Ground ??? | 1.2mm Black |
Diagram of LV connections currently needed
| Parameter | Value |
|---|---|
| 12V Consumption — Peak Start | |
| 12V Consumption — Continuous | |
| CAN type | |
| Contactor Control |
Wiring, High voltage connector~

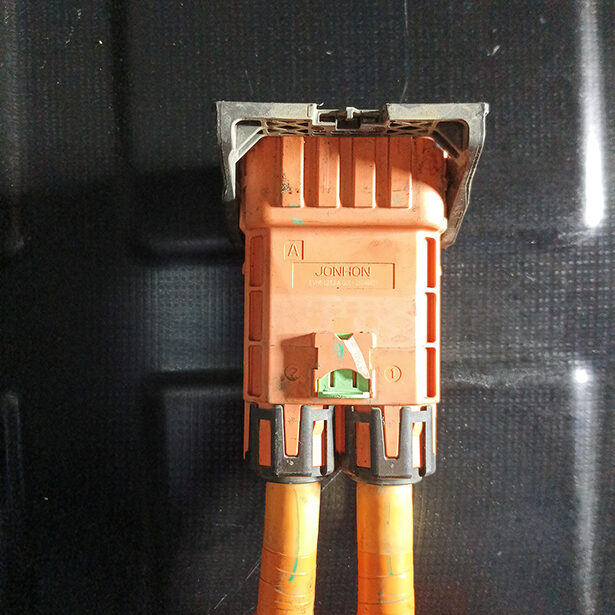

There are two HV Connectors (A) & (B)

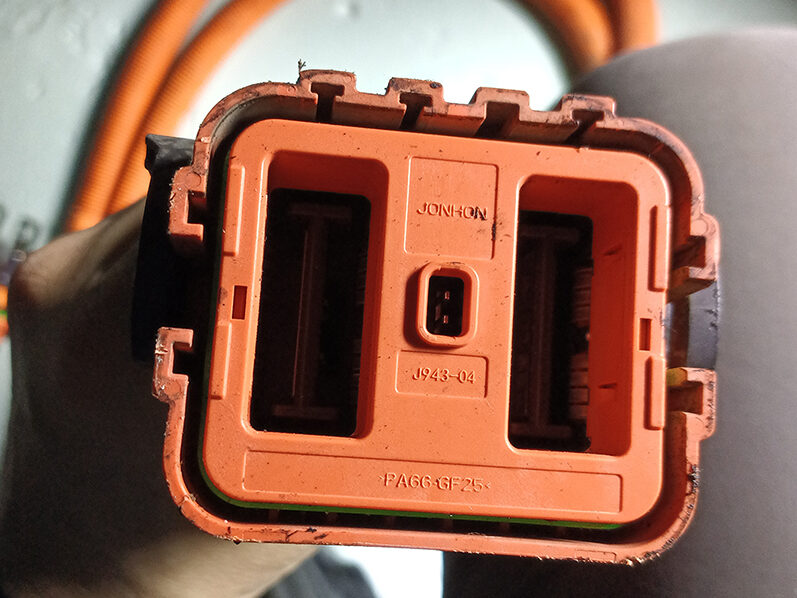

Connectors are Jonhon 2 Pin EVH6 Series (EVH6 L2TJ-A G001 25046021)
Rated: Current is 150-350A, Voltage 1000V DC, IP68

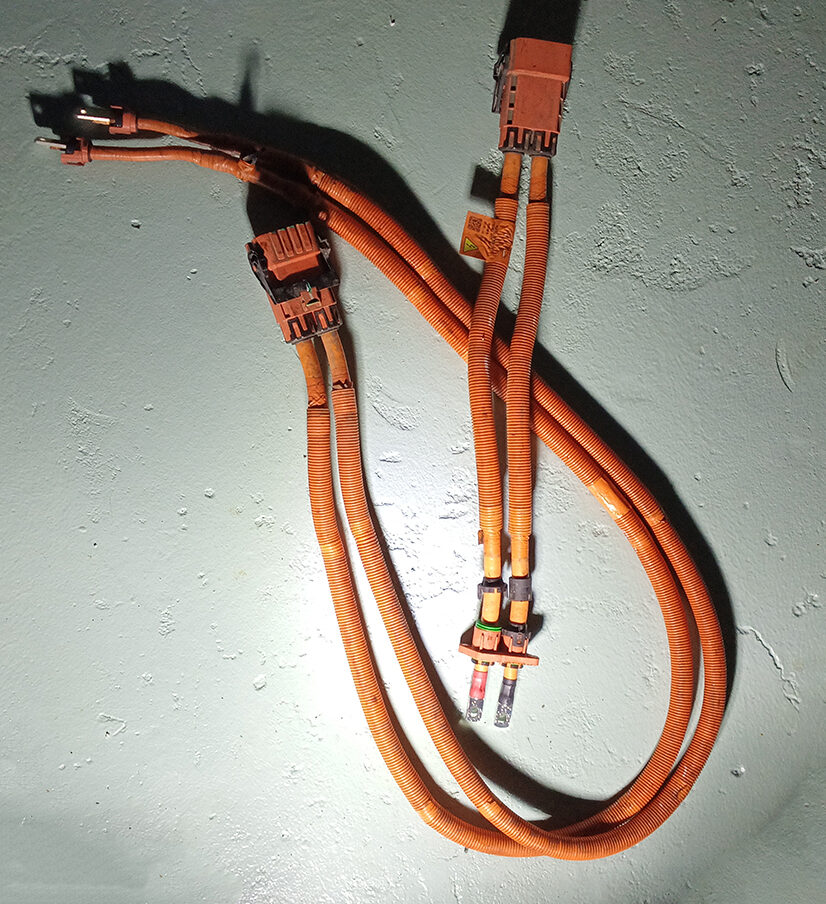

Straight Plugs with 70mm² cable
Cable A is 750mm in length. Cable B is 2000mm in length.

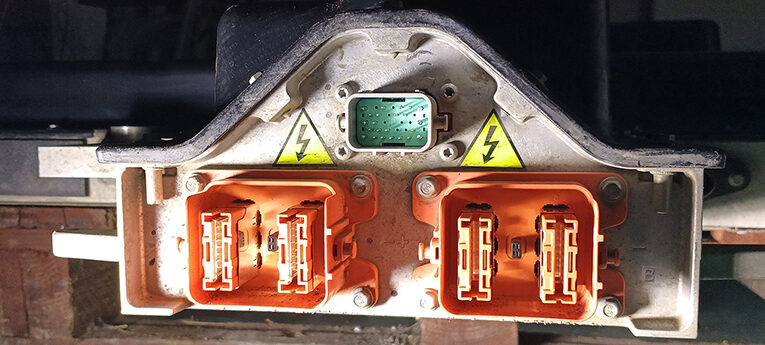

The Connections on the battery for each plug are clearly marked on Aluminium casting.
| Parameter | Value |
|---|---|
| Interlock Required | |
| Number of Interlocks |
Troubleshooting tips~
CAUTION
Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
