Batrium

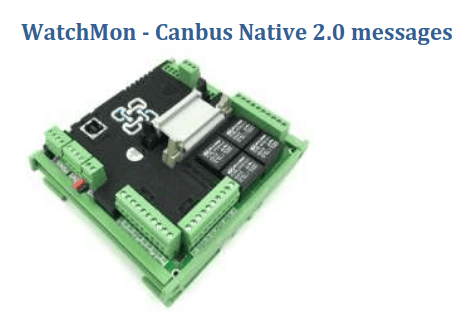

Start by connecting the CAN port of the BMS, to the CAN port on the Battery-Emulator. Refer to the "How to Wire Up and Configure the CANbus Network" document which is available from Batrium. In short, the settings on the Batrium should be set to Base Address 0x500 , and the protocol mode should be set to Native 2.0

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
