Renault Kangoo

FAQ: Renault Kangoo Battery~

Renault Zoe support is still being developed. The Kangoo shares a fair share of CAN data with the Renault Zoe and Renault Fluence.

Variants of the Kangoo~

There are 3x batteries available for the Kangoo:

  • 22kWh 2011-2016
  • Can be used with the Renault Kangoo setting
  • NOTE: Sometimes SOC does not update on these packs, this can be solved by switching to the "Use Estimated SOC" option
  • 33kWh 2017-2021
  • Can be used with Zoe Gen1 software setting: Renault Zoe Gen1 22/40kWh
  • 44kWh 2022+
  • Pinout unknown, NOT SUPPORTED YET since nobody has tested it


Physical size;

  • Weight 295 kg (22kWh)
  • Weight 260 kg (33kWh)
  • Dimensions 1214 x 802 x 290mm

The 33kWh pack doesn't have a negative contactor, the only way to isolate it is to pull the service disconnect. In the contactor box there's a current sensor, pre-charge resistor, pre-charge relay, main contactor and a 275a 1000V fuse. The main contactor is 150a rated.

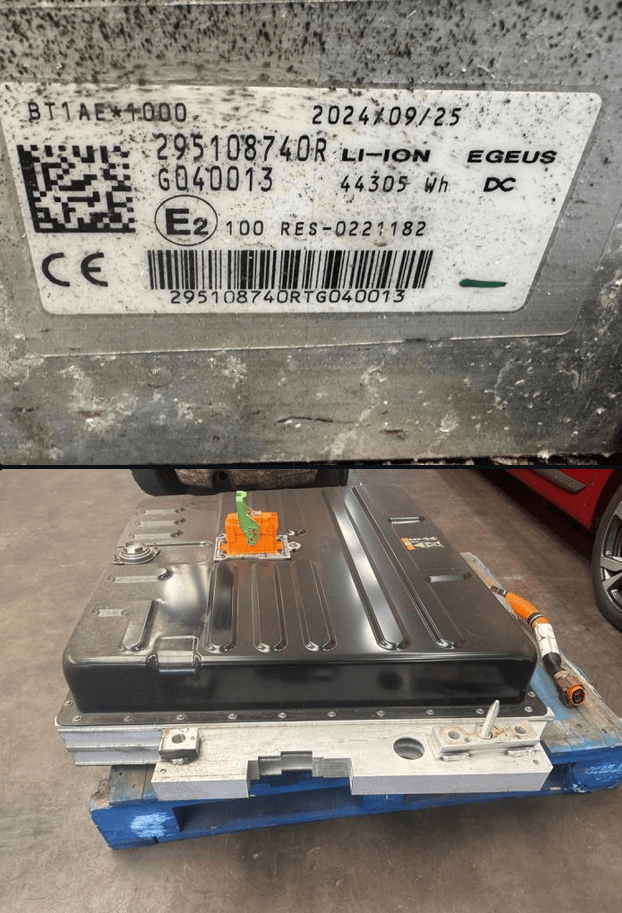

44kWh pack example:


Part numbers for Renault Kangoo batteries~

Product Purchase Link
Battery communication connector, Yazaki 7282-8854-30 AliExpress
High voltage connector 80kW 297A6-5SH1A OR 297A22581R Ebay

There are 2 external Low voltage Connectors for the 33kWh battery pack.

Grey Yazaki x

Pin Internal Wire Function
1 Black 12v BMS supply via 10a fuse
6 Yellow Can High
7 White 12v Contactor supply via 15a fuse
12 Blue Can Low

Black Yazaki 7283-8854-30

Pin Internal Wire Function
1 Black Ground
3 Green Main Contactor (ground to close)
5 Blue Pre-charge relay (ground to close)

The 22kWh pack pinout (black connector)

Pin Internal Wire Function
1 Red fused +12V permanent to BMS
3,4,5 Black electrical earth
6 White Can High
7 Violet fused +12V to power relays
8 Orange Power relay 1 - positive (ground to close)
9 Green Power relay 2 - negative (ground to close)
10 Brown Precharge relay (ground to close)
12 Violet Can Low

6 Violet and 12 White are twisted together (CAN bus)

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
