FoxESS HV2600
FoxESS HV2600~
The FoxESS battery is an OEM high quality LFP battery intended for stationary storage. The Battery-Emulator has support for interfacing with this OEM battery, so that you can connect it to other Inverters not originally intended for it. For example a Fronius Gen24.

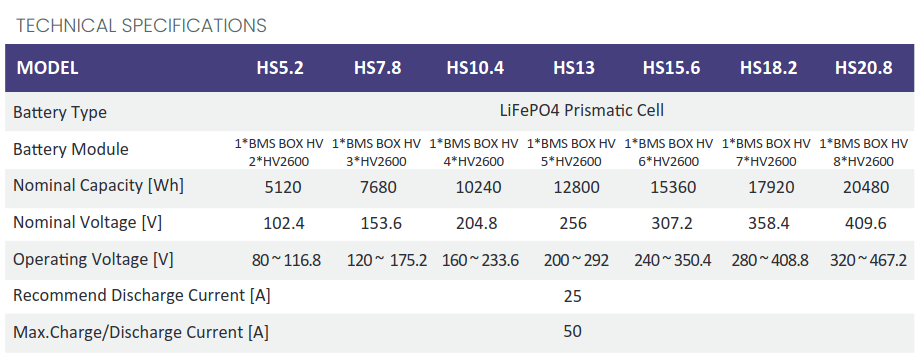

Specifications~
The battery is modular, and can be arranged in 1-8 stacks to raise/lower the output voltage according to inverter needs. Capacity grows each time you add a module.
Software configuration~
For this battery type, use the option called "FoxESS HV/2600/ECS4100 OEM battery" under the "Battery Protocol" setting.
CAUTION
Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
