The Geely SEA platform is used on the following vehicles , batteries that have been successfully tested with Battery-Emulator are marked with a ✅ , feel free to expand this list!

SEA1/PMA1

  • Ji Yue 01 (2023–2024)
  • Ji Yue 07 (2024)
  • Lynk & Co Z10 (E371) (2024–present)
  • Polestar 4 (P417) (2023–present)
  • Volvo EM90 (2024–present)
  • Zeekr 001 (DC1E) (2021–present) ✅
  • Zeekr 009 (EF1E) (2022–present)[16]

SEA2/PMA2

  • Lynk & Co Z20/02 (E335) (2024–present)
  • Smart #1 (2022–present) ✅
  • Smart #3 (HC11) (2023–present)
  • Volvo EX30 (2023–present) ✅
  • Zeekr X (BX1E) (2023–present)

Volvo EX30 Battery specifications / Serial numbers~

The following batteries are available for the EX30

  • 55kWh LFP
  • 51kWh net, 120S
  • Nominal voltage 392V, Max voltage 438V
  • 409,5kg, 1569(L) x 1450(W) x 150(H)
  • 69kWh NCM Part No: NBE661
  • 66kWh net, 107S , 169AH
  • Nominal voltage 380V, Max voltage 465V
  • 390kg , 1837.6(L) × 1450(W) × 150(H)

Note on crash lock 💥~

Batteries that have been involved in a severe collision will be crash locked. You can unlock the battery by pressing the "Unlock crashed BMS" button in the More Battery Info webserver page. Remember that the pyrofuse most likely also is blown if the crash status is set.


Volvo EX30 batteries can be unlocked this way, but Zeekr SEA based batteries require a more involved security algorithm that is not yet implemented in the software.

Note on recall 🔥~

If you are planning to use a 69kWh NMC pack from an EX30, be aware that there is a recall on ~3000 vehicles related to risk of battery fires at high SOC. Try to avoid using one of these affected batteries.

Affected VINs seem to all be: EK = E400V14 '25- EX30 AWD, '26- EX30 Cross Country AWD EL = E400V18 '25- EX30 RWD

Pictures~

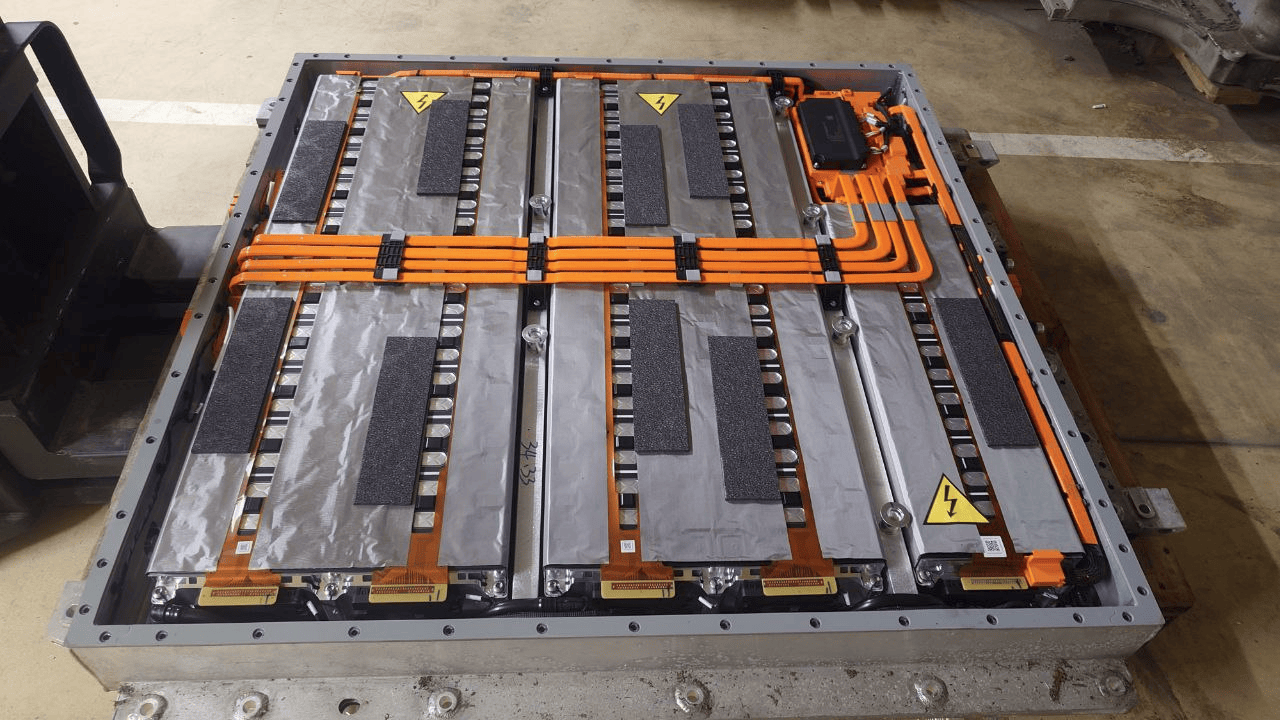

69kWh NCM battery:

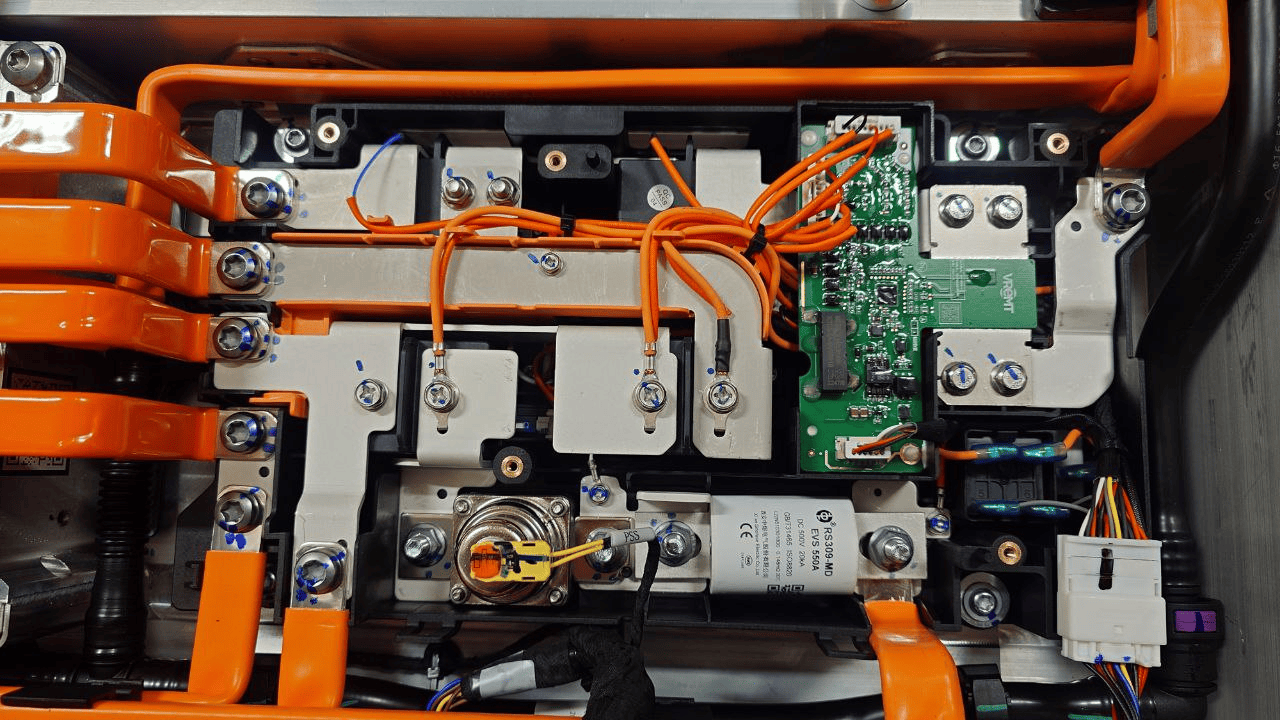

Contactors and fuses:

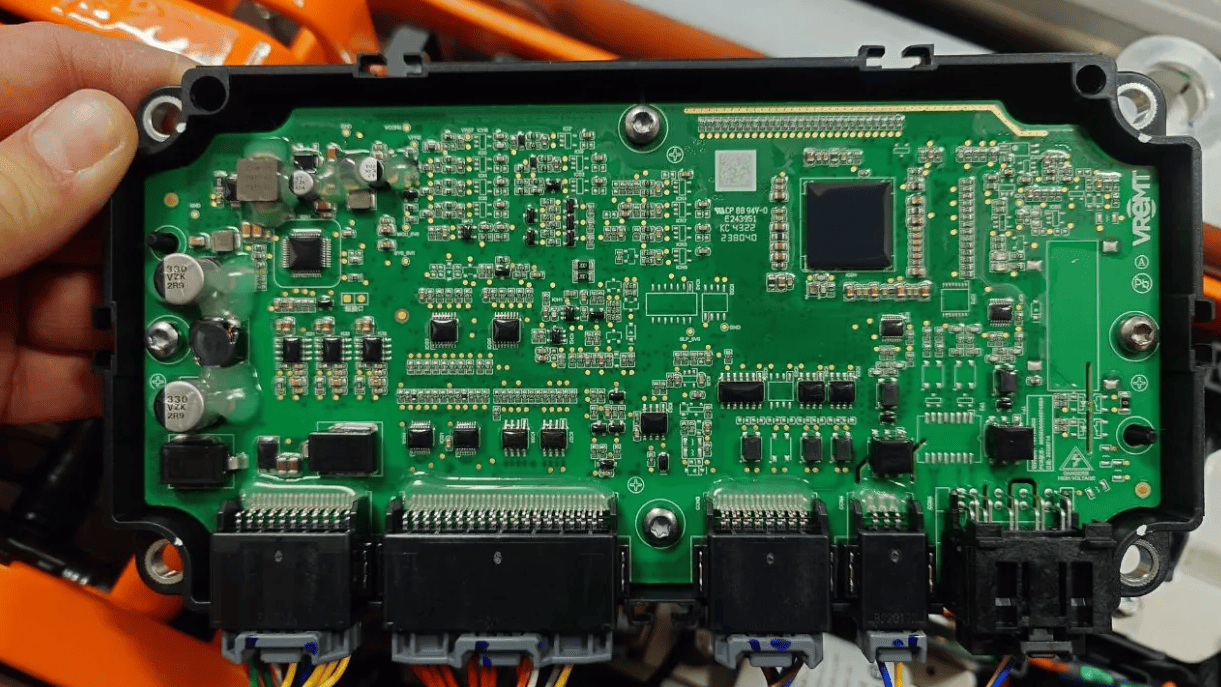

BMS inside:

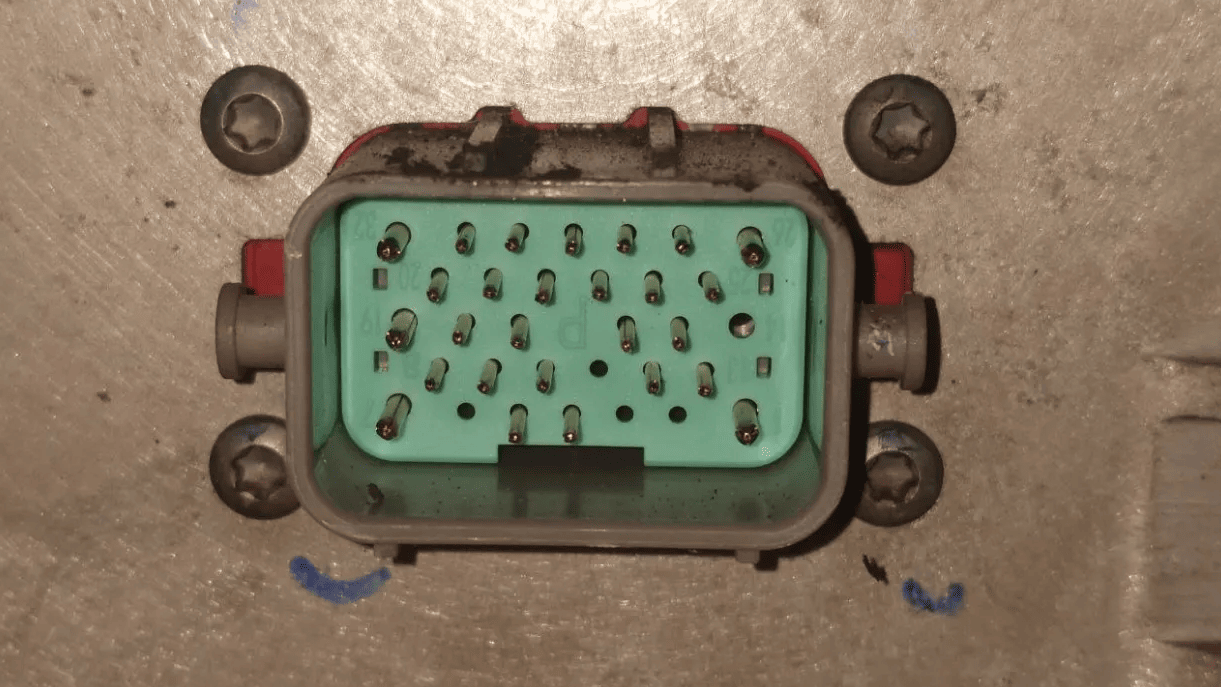

LV connector:


Pin Function Connect
1 KL30 +12v
4 Coolant level sensor 1 kOhm resistor between pin 4 and pin 5
5 Coolant level sensor 1 kOhm resistor between pin 4 and pin 5
7 Ground 12v ground
8 HVIL 3 In Connect direct to pin 12
9 HVIL 2 In Connect direct to pin 10
10 HVIL 2 Out Connect direct to pin 9
12 HVIL 3 Out Connect direct to pin 8
19 Ground 12v ground
22 Fast charge temp sensor 12 kOhm resistor between pin 22 and pin 29
24 Propulsion CAN L CAN-L
25 Fast charge temp sensor 12 kOhm resistor between pin 31 and pin 25
26 CPSR +12v
27 Propulsion CAN H CAN-H
29 Fast charge temp sensor 12 kOhm resistor between pin 22 and pin 29
31 Fast charge temp sensor 12 kOhm resistor between pin 31 and pin 25
32 KL30 +12v
  • Connect 12v ground to the battery chassis.
  • Make sure that the correct (60ohm) termination resistance is present between CAN-H and CAN-L, there is no built in resistor in the battery. (you should most likely add a 120ohm resistor at the battery connector)

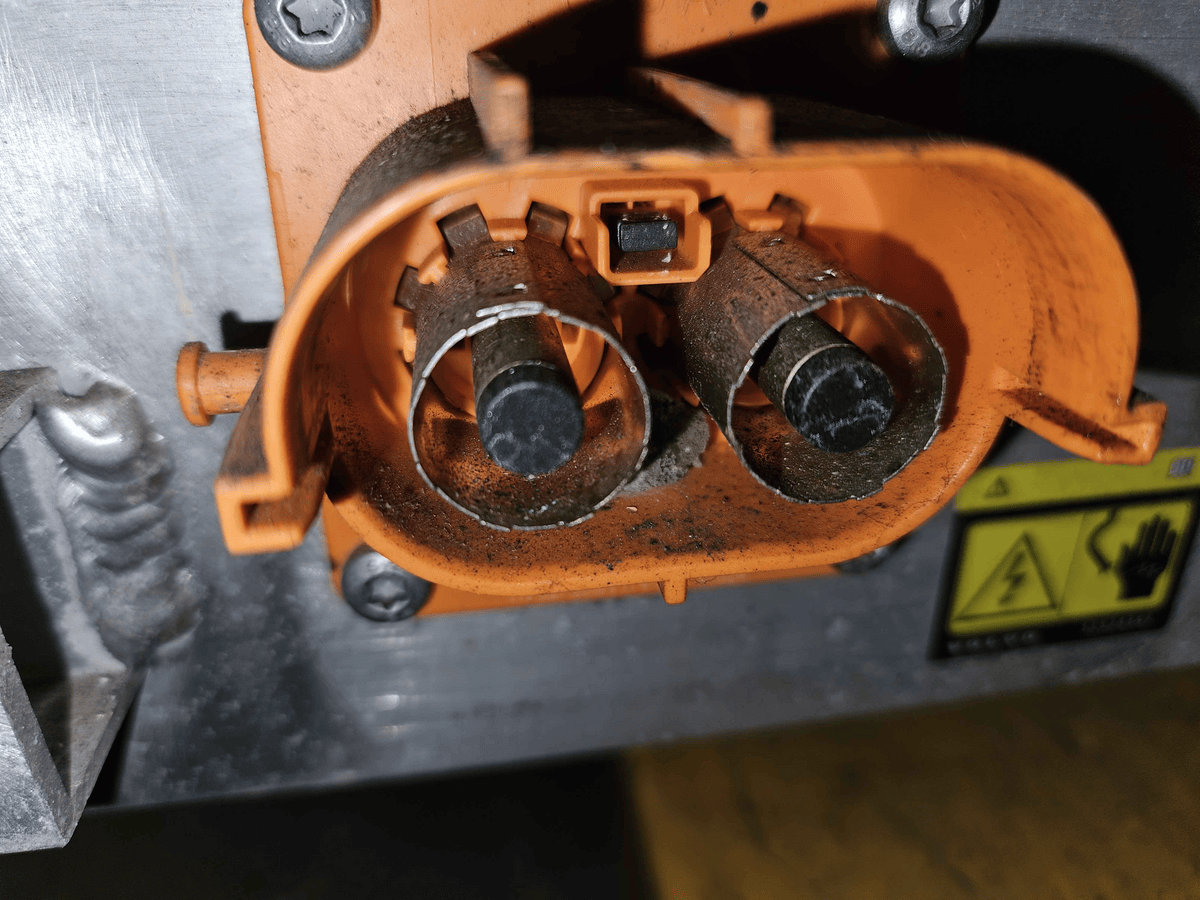

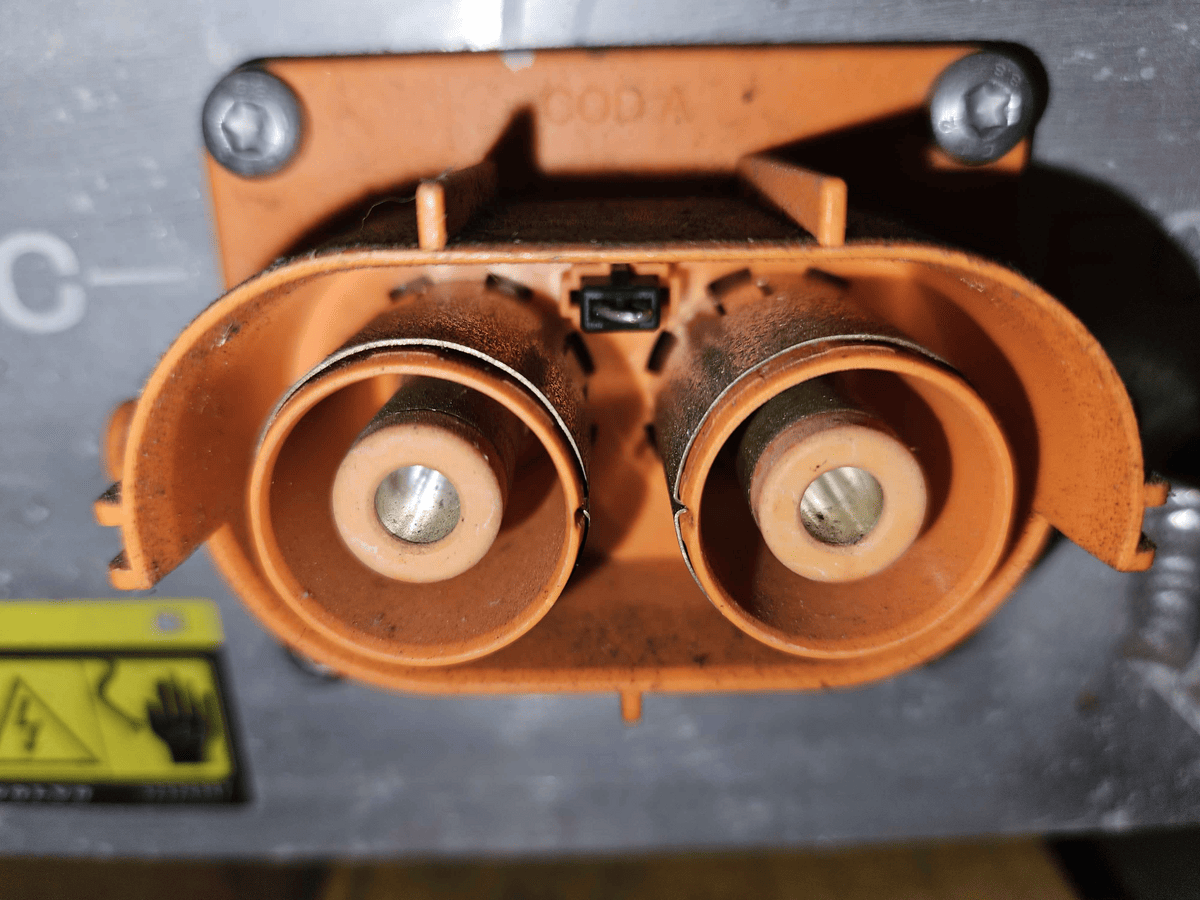

  • Also make sure to jumper the HVIL loop in the unused high voltage connectors. (make sure to isolate/block the access to the connectors as they will/could have over 400v accessible when the system is running)

image image

Product Purchase Link
32pin battery connector AliExpress
High voltage connector ???

Reading DTCs~

  1. To read the DTCs you have to open another browser tab with the CAN-logger view.
  2. Enter filter 1588, press OK. Then press "Stop & Back to main page" (the filter setting will persist), reopen CAN logger and it should be cleared and the filter is active.
  3. Press "More battery info" in the other tab and press read DTC.
  4. Refresh the CAN-log and you should have the readout there. (BE performs a bunch of diag requests once a minute that also will end up in the log with that filter, but that is normal)

DTCs are presented with 4 bytes, last byte of each code is status. (Permanent, Intermittent)

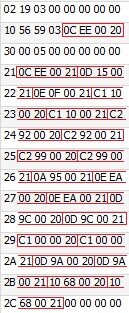

Codes might be divided between consecutive CAN frames, but just add them together like marked in the image below.

DTCs_2

DTC explanation

065868 - Actuator Supply Voltage A Circuit Low 0A0A00 - High Voltage System Interlock Circuit 0A2900 - Battery Power Off Circuit High 0A9500 - High Voltage Fuse A 0AA700 - EV Battery Voltage Isolation Sensor Circuit 0AA800 - EV Battery Voltage Isolation Sensor Circuit Range/Performance 0C7663 - EV Battery System Discharge Time Too Long 0CEE00 - EV Electronics Coolant Temperature Sensor Circuit 0D1500 - Battery Charging System High Voltage Interlock Circuit/Open 0D5C00 - Battery Charger EV Battery Output Power Performance 0D9A00 - Battery Charger Coupler Temperature Sensor A Circuit Range/Performance 0D9B00 - Battery Charger Coupler Temperature Sensor A Circuit Low 0D9C00 - Battery Charger Coupler Temperature Sensor A Circuit High 0E0F00 - Generator Inverter Power Supply Circuit/Open 0EE900 - Battery Charger Coupler Temperature Sensor B Circuit Low 0EEA00 - Battery Charger Coupler Temperature Sensor B Circuit High 106800 - EV Battery Pack Coolant Level Low 125200 - Lost Communication with Battery Charger Power Converter Module "A" 127800 - EV Battery Voltage System Isolation Internal 127900 - EV Battery Voltage System Isolation Front electrical machine 920600 - Crash Occurred 908787 - LIN Bus "A" Bus. Signal / Message Failures. Missing message C06488 - CAN Bus Message Failures BECM going Bus off C10000 - Lost Communication With Engine Control Module C11000 - Lost Communication With Drive Motor Control Module A C29200 - Lost Communication With Drive Motor Control Module B C29900 - Lost Communication With On Board Charger
