Periodic BMS Power reset

Why is Periodic Reset needed?~

Some EV batteries are not able to operate 24/7 nonstop under all conditions. Over time the SOC% will become less and less accurate, and in some integrations like the Nissan LEAF, even the GIDS (Wh remaining) becomes confused (see Issue 86). Balancing also becomes a problem on some packs.

The solution is to periodically reset the 12V power going into the BMS. The purpose is to force the BMS to recalculate SOC and clear drift/memory leaks by removing its power for a configured time.

Batteries that benefit from Periodic Reset~

NOTE

Check the battery-specific page for what settings are required for the BMS reset to be effective. This includes wiring (you may need to cut both VBAT and IGN, or only IGN; you may need to wait a certain amount of time before re-applying power).

GPIO behavior~

Check out the pinout table for each board, to see which pin is defined for BMS power, and wire your SSR to that.

The BMS power pin is only configured as an output and driven HIGH at boot if at least one of the following is true:

  • Periodic BMS Power reset is enabled, or
  • Allow remote BMS Power reset is enabled, or
  • the board forces it on (only the Stark CMR board does this).

If none of these apply, the initialization block is skipped entirely — the pin is never set as an output and therefore stays low/floating. This is why the pin is not driven high unless one of these options is enabled, and this is why when you don't use this feature, you will have to power your BMS directly.

Both options behave identically with respect to the pin: enabling Periodic BMS Power reset or Allow remote BMS Power reset alone is enough to drive the pin HIGH at boot, exactly like the periodic option.

The configured pin will remain HIGH during regular reboots and OTA in case BMS Reset is configured as the following:

  • LilyGo T-2CAN: GPIO3 and GPIO2 (both the default and the option)
  • LilyGo T-CAN485: only GPIO25
  • Waveshare ESP32‐S3‐RS485‐CAN: GPIO6 (default and only option)
  • BECom: GPIO1 (default and only option)
  • Stark CMR: GPIO23 (by hardware) and GPIO25

In other cases there may be a brief window during startup, before this init runs, where the pin is not yet driven; expect a short low/indeterminate period at power-on before it goes HIGH.

Reset sequence~

When a reset runs (via MQTT, the HA button, or the 24h timer), the pin goes LOW for the configured duration, then HIGH again:

  1. Pause the emulator so it stops requesting charge/discharge.
  2. Wait for safe current — proceeds when current is 0 A, or below 1.0 A after 5 s. If current is still flowing after 10 s the reset aborts (to avoid damaging contactors under load) and raises EVENT_PERIODIC_BMS_RESET_FAILURE. Exception: if the emulator drives the contactors directly, it cuts power immediately since it can hold the contactors closed.
  3. Cut BMS power — drive BMS_POWER LOW.
  4. Hold for the Periodic BMS Power reset OFF time (BMSRESETDUR, default 30 s, configurable in the webserver).
  5. Power back on — drive BMS_POWER HIGH, then wait a fixed 3 s warmup.
  6. Unpause. Done.

By default the system will power off for 30 seconds during the daily reboots. This time can be tweaked in the Webserver settings if you want the reset to be shorter or longer (you can set values between 1 and 600 seconds). Some batteries are OK with as short resets as 2 seconds, some others require several minutes to save their settings. Here is the Periodic BMS Power reset OFF time setting:


Taking it into use~

There are two ways you can implement Periodic BMS Power reset:

  • triggered locally on Battery Emulator
  • triggered from an external system through MQTT

Local triggering has the benefit of operating completely standalone, without any dependency of any third party system. Remote triggering has the benefit of having control of the exact moment you want to perform the reset, take into account various aspects of your energy usage.

On-demand trigger~

Right under Periodic BMS Power reset OFF time setting you can find a Perform a BMS Power reset now button to immediately start the procedure on demand. Pressing Start will ask for a confirmation:


You will get a notification that "BMS Power reset started." If you try to trigger it again before it has finished, it will warn you that's already in progress.

Timed trigger~

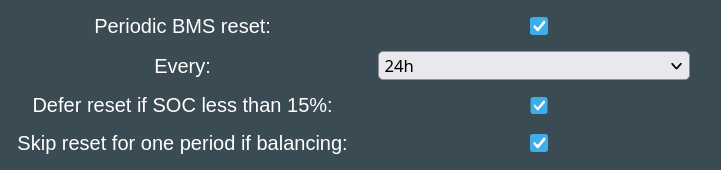

Enable the Periodic BMS Power reset option. This will reveal 3 options:

  • Do the reset once per 24h or once per 48h
  • Defer reset if SOC (either real or scaled) is less than 15%
  • Skip reset for one period if balancing

Deferring in case of low SOC is useful for cases when reset causes the calculated SOC to differ from the value it was before the reset. In such a case, if the battery was stalling at a min. SOC imposed by the inverter (usually 5%), and BMS would come up with a lower SOC than it had before the reset, it could trigger the inverter to start charging to grid if no sun available, to reach back up to the level required. You can avoid this situation by performing the BMS reset automatically later, when the battery charged back to above 15%.

Skipping one period if balancing (of either 24h or 48h) can be useful for battery packs which report balancing state correctly. Resetting the BMS while balancing is in progress could be counter-productive on packs which spent a lot of time measuring the cells before balancing. This option gives a chance to the balancing process to actually finish, and only perform the reset a cycle later. We don't wait forever to finish balancing, as it's very unlikely that this process would take multiple days. If it still reports as balancing after a second period has passed, it will be reset nevertheless.

With Periodic BMS Power reset option enabled, the GPIO pin will be toggled ON upon boot, and when the time comes to reset the BMS, the pin will be turned OFF for the number of seconds configured (default 30).

The day starts when Battery Emulator is powered on and booted successfully. After 24 hours of uptime, the reset will be triggered.

Remote trigger through MQTT~

Battery Emulator's MQTT implementation subscribes to the BMSRESET command topic to trigger a hardware power-cycle of the BMS from a remote system like Home Assistant.

The BMSRESET command (and the auto-discovered "BMS Power reset" Home Assistant button) is only acted upon when Allow remote BMS Power reset (REMBMSRESET) is enabled. If it is disabled, the command is silently ignored. Note that the HA button is published regardless of this setting, so it can appear in Home Assistant but do nothing until the option is enabled.


With Allow remote BMS Power reset option enabled, the GPIO pin will be toggled ON upon boot. It will be toggled OFF and back ON after the configured time when the command arrives. It doesn't send any battery protocol/CAN message. It performs a hardware power-cycle of the BMS by toggling the BMS_POWER GPIO pin, using the exact same routine as the built-in feature.

NOTE

This is not the software BMS Reset of the More Battery/Cell Info page. With a Tesla battery, that one has its own MQTT command and Home Assistant button, which restarts the BMS controller over CAN and needs no GPIO pin or setting.

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
