Custom DIY battery with Orion BMS~

Software configuration~

For this battery type, use the option called "DIY battery with Orion BMS (Victron setting)" under the "Battery Protocol" setting.


Also remember to configure the designed voltage for your pack, and the chemistry/cellvoltage limits.

Setting up the BMS~

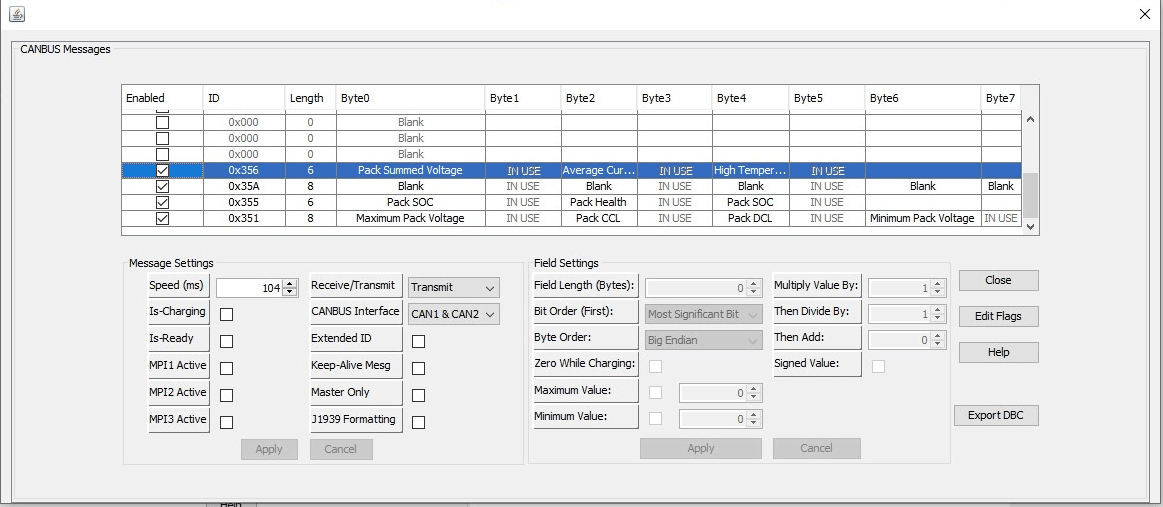

You need to set the Orion BMS to transmit using the Victron protocol.


CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
