Growatt LV (GBLI-series)
Compatible Growatt LV batteries~
- Growatt GBLI6532 ✅ — confirmed live for weeks against a Solis S6-EH1P8K-L-PLUS inverter
- If you try another GBLI-series pack, please add it to this list!
Software configuration~

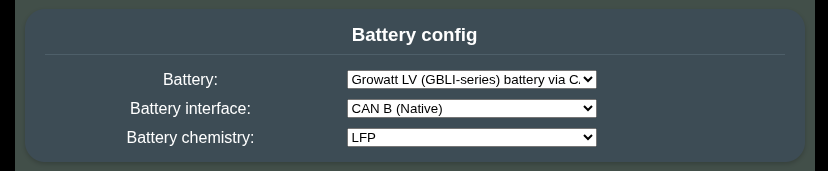

For this battery type, use the option called "Growatt LV (GBLI-series) battery via CAN, 500kbit/s" under the "Battery Protocol" setting.
Wiring notes~
The GBLI6532 has three RJ45 sockets. Use PCS (the inverter-facing one), not Link-In/Link-Out — those carry the inter-battery bus on different pins and will silently not work.
| Pin | Signal |
|---|---|
| 4 | CAN_H |
| 5 | CAN_L |
| 7 | PCS-WAKE− |
| 8 | PCS-WAKE+ |
WAKE (pins 7/8) is documented for waking the pack from a non-Growatt inverter, but it is not needed — a CAN-only connection (just pins 4/5) is enough to both enable and revive the pack, confirmed by wiring a cable with WAKE deliberately left disconnected.
A standalone battery still needs the correct master-select plug fitted in Link-In/Link-Out, or it may never enumerate on the bus.
References used~
- Growatt BMS CAN-Bus protocol, low voltage V1.04
- schmellic/growatt2solis — the standalone ESP32 gateway this driver was ported from, including its full CAN capture and reverse-engineering notes
CAUTION
Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
