Compatible Solax inverters~

  • Solax X3 (all revisions)
  • Solax X3 Ultra (all revisions)
  • Solax X1 (all revisions)
  • Solax X1 VAST (all revisions)

⚠️ Word of caution, CAN overvoltage ⚠️~

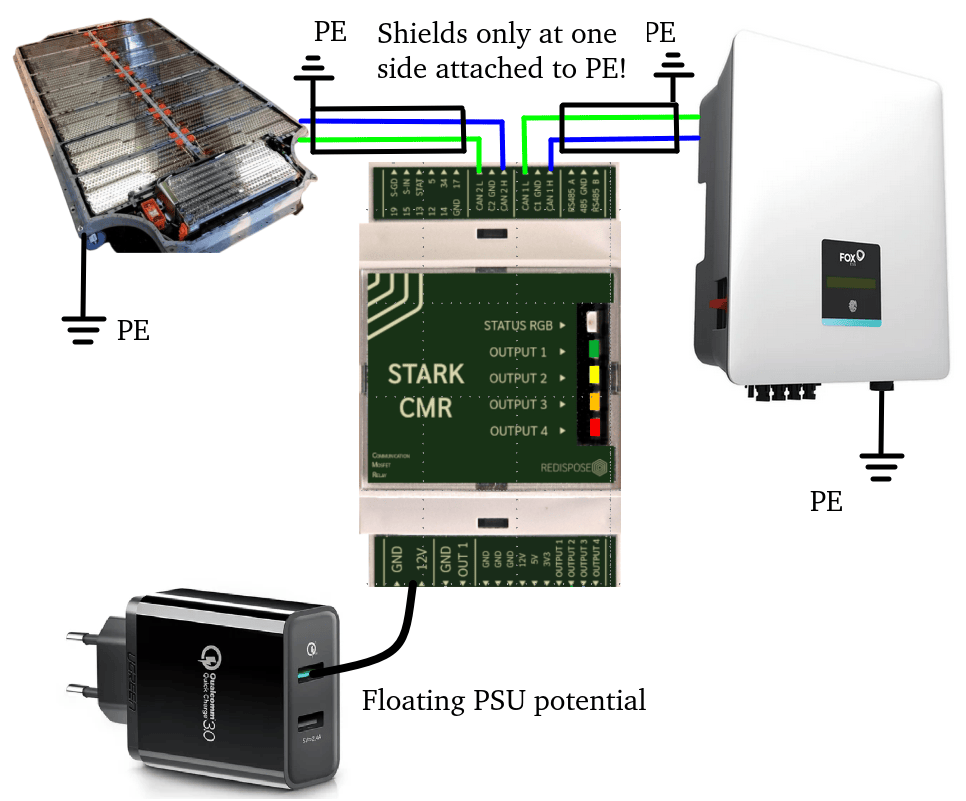

Solax inverters can have high voltage potential on the CAN chip. They can be 110V when measuring between CAN and PE. It can burn up your Battery-Emulator CAN chips if there is a path to protective earth. This becomes a problem if the board you are using has GND on the same plane as PE. Then the 110V diff might leak over and damage the chips. A way to avoid this is to use a PSU to power the Battery-Emulator board that is not connected to PE. For instance a 2-prong phone charger would effectively be isolated from PE.

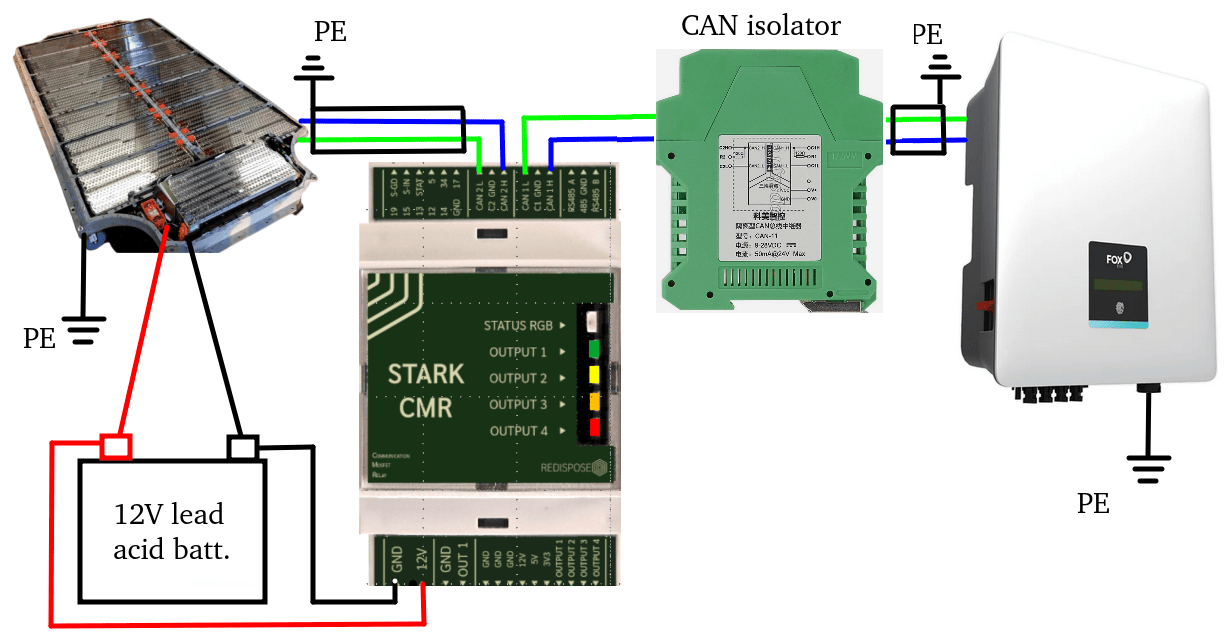

An even better way to tackle this is with the use of a CAN isolator between the inverter and the rest of the system. Examples found in the lightning strike wiki


Failure to implement any of the above solutions will lead to the VP231 CAN transceiver chip burning up! 🔥

Alternatively, using hardware with built-in galvanic isolation (such as the LilyGo T-2CAN) should avoid this problem without imposing extra power supply requirements.

Word of caution, isolated CAN~

⚠️ This inverter does not handle a CAN connected EV battery on the same channel. If the inverter which likes to see only extended CAN frames sees standard automotive CAN frames, the inverter will enter a fault state.

This can be solved in three ways:

Attention

Always check the termination resistance of the system! That way you know if resistor needs to be removed or not.

Grounding is extremely important. Make sure the battery case is connected to protective earth, and the shield part of the twisted pair CAN is connected to PE also! Failing to do this will result in CAN errors.

Which protocol to use~

For this inverter type, use the option called "SolaX Triple Power LFP over CAN" under the "Inverter Protocol" setting.


WARNING

Never use lead-acid battery mode to force a battery to operate. This means there is no communication between the EV battery and inverter, and battery has no way to stop the charge. Users have permanently degraded batteries by operating in this mode!

IMPORTANT

If you see a BattVoltFault IE07 fault code on the inverter, you might need to edit the CAN data content. This can happen if you use a 60S battery instead of 96S battery. Follow the steps below.

  1. Start with checking that your battery contactors are closing, and that high voltage is present on the inverter input pins.
  2. If the inverter has voltage, but is still throwing the BattVoltFault error, "Reported module count" and the "Reported battery type" option


Battery type information~

Solax inverters are designed to be used with Solax brand batteries. Battery Emulator can be set to emulate any of the battery types on the list below.

A good choice is type 131, which is the T-BAT-SYS-HV-R2.5, a 16S LFP pack:

Battery type Num modules Min voltage Nom voltage Max voltage
131 2 89.6 102.4 116.8
131 3 134.4 153.6 175.2
131 4 179.2 204.8 233.6
131 5 224 256 292
131 6 268.8 307.2 350.4
131 7 313.6 358.4 408.8
131 8 358.4 409.6 467.2
131 9 403.2 460.8 525.6
131 10 448 512 584
131 11 492.8 563.2 642.4
131 12 537.6 614.4 700.8
131 13 582.4 665.6 759.2

(note that the enforced min/max limits will be wider than the range shown here - choose a setting where the maximum is high enough for your battery).

List of battery names and type codes (decimal):

BAK: 81
T58 V1: 82
Sinowatt: 83
T30: 84
T50: 85
TR25: 86
TR36: 87
THS50E: 88
HS25: 89
HS36: 90
T58 V2: 91
LR25/36: 92
LD53: 93
LD150: 94
LD51: 95
TP012: 96
TP013: 97
TP014: 98
LD117: 99
T58V3: 100
LD160: 101
LD143: 102
X-BP 2700: 103
TP020(LD321): 104
TP021(LD51E): 105
TP022(LD160E): 106
BMS-Parallel BOX-II: 129
T50_P: 130
TR25_P: 131
BMS-Parallel BOX-II V2: 132
TCBox-70: 140
BMS-Parallel BOX-II G2: 141
HS51: 145
HS50A: 146
TPCU001_R140: 161
TPCU002_R460: 162
TR-HR140: 163
TPCU004_R522_DC: 164
TPCU005_HR1044_FOREGIN: 165
TPCU006_HR1044_CHINA: 166
TPCU007_HR76: 167
TPCU008_1044KWH: 168
TPCU009_HR522_CHINA: 169
TPCU010(B57): 170
TPCU011(HR522): 171

Notes on CAN controlled contactors~

IMPORTANT

Solax is one of the few protocols that demands contactors to open from time to time. This works great with GPIO controlled contactors, but this causes problems for some CAN-controlled battery contactors (like Tesla), which can't reclose contactors once they've been opened (they go into an error state).

To get around this issue, configure the "Inverter Contactor Workaround:" option


It can be configured to either:

  • No workaround (Allows Solax to command contactors open/closed)
  • Keep contactors always closed (Skips any requests coming from Solax)
  • Lock contactors closed after first close request (Only the initial Solax demand goes thru, afterwards contactors are no longer obeying Solax)

This will make Battery Emulator ignore requests from the inverter to open contactors, and always report to the inverter that the contactors are closed (regardless of their actual state), preventing the inverter from waiting for the contactors to open.

Dual-battery inverters~

Some Solax inverters support two independent batteries. These only work reliably with batteries that are happy to open and reclose contactors, due to the special closing sequence that Solax use on these inverters. To make sure that the user has connected the CAN inputs the right way round, the battery will demand that both batteries open contactors, and wait for the voltage on both inputs to drop. It will then command the contactors to be closed one at a time, checking that the right bus is energized each time.

The Keep contactors always closed workaround is ineffective with these inverters. You may be able to get the Solax to start up by manually isolating both HV inputs, and closing them in the correct order.

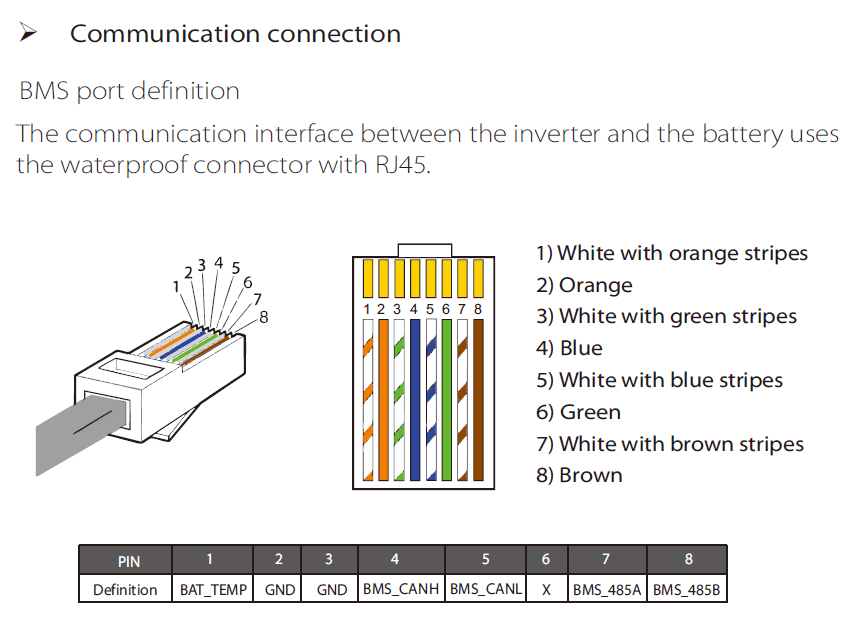

Connection diagram~

BMS port pin 4 is CAN-H pin 5 CAN-L (for Solax X3 G4). Connect only these two wires to the Battery-Emulator.


Troubleshooting tips~

Problem Possible fix
Inverter stuck in "Waiting..." Check that high voltage is present on inverter terminals, and that polarity is right way. Also check that the precharge/positive-contactor control has not been accidentally swapped around. A telltale of this accidental swap is that the voltage reading on the inverter side will be jump +-50VDC all the time.
Contactors close, then after a few seconds they open. With the battery on its own, without inverter connected, contactors stay on. Solax controls contactor opening, this is not working good on CAN controlled packs. See the Notes on CAN controlled contactors
Inverter screen showing "Bat Mismatch IE102" error Configure "Reported battery type (in decimal):" to 81 in the webserver settings, OR update Battery-Emulator to latest version

Notes on Offgrid Solax~

Using any inverter in offgrid mode can result in overdischarging of the battery. Make sure you have a way for the Battery to open the contactors incase the battery gets overdischarged. Either use GPIO controller contactors, or make sure that the Battery-Emulator is able to open the contactors on demand. A good test is to use the "Open Contactors" button in the Battery-Emulator Webserver, and observe if the system is able to shut itself down. If the system does not shut down, it is not safe for offgrid use.


Reverse engineering information~

Some interesting findings based on dynamically changing some of the CAN values for testing:

  • The Inverter does obey the Contactor flag from the BMS (1875 byte 2) and if this is not 1 it will sit in waiting and not go into "Checking" phase and if inverter already active it will go back to "waiting" if you send 0 instead of 1 and internal contactors click (presumably open). So this could be a good initial alarm control to have less wear on the battery contactors.
  • The battery kind can be changed during normal operation and this will cause a BattVoltFault - presumably due to different voltage ranges.
  • Seems each battery kind has a different hardcoded voltage range as with 7 as number of packs only works with 0x83 (TP201)
  • Adjusting the number of packs during normal operation (from 7>6 for example) causes a BattVoltFault so seems this is being monitored constantly and not just on BMS initialisation (checking phase)

For a pack with actual voltage of 337v (21% soc) and using different Battery Kinds (1877, Byte 4)

Previously known Kinds:

  • 0x50 (Blank) 6 works - 7 does not ("About" menu has no info)
  • 0x51 (BAK) 6 works
  • 0x52 (REPT) 6 packs works - 5 + 7 do not
  • 0x53 (SINOWATT) 6 works
  • 0x54 (GOT) 3+4 works, 2, 5>10 do not work
  • 0x55 (TP001) 6 works, 2>5, 7>8 do not
  • 0x81 (TP200) 6 works 4/5 and 7>9 do not
  • 0x82 (TP201) 6 works 4/5 and 7-9 do not
  • 0x83 (TP202), 7 packs works fine and even changing it to 8 works despite being out of range (should be min 348.5v) but going lower to 6 causes battvoltfault. So it seems to prefer higher voltages than lower ones.
  • Type 129(dec) = REP TP58
  • Type 97(dec) is TP013

New Kinds Tested:

  • 0x00 NA - 6 works, 0/5/7 does not
  • 0x5B (TP007) 6 works 4>5 and 7>9 do not (4 was the no of packs I recorded in logs from real setup with 2 x triple batteries which reported voltage min/max of 180>262v and actual voltage of 238v at 97% SoC)

Other battery Kind ranges I checked just to see if they showed in the about menu - didn't try no of packs (sorry numbers below in Dec not HEX):

0-10 N/A
85-93: TP001>TP009
94>99: TP010 > TP015
100>128 - NA
129 - REP-T58-P1
130>139: TP201>TP210
140>160 NA
  • BTW, according to SOLAX documentation the RP-T58-P1 modules (these are the older, first generation modules) can be UP TO 4pcs! That's why the setting Battery type 129 can be only up to 4 MODULE COUNT.
  • It doesn't seem to matter too much what voltage min/max you send on frame 1872 - if the real voltage or even voltage sent on 1873 is outside of these ranges it does not impact operation worryingly. Clearly the limits on battery kind are overriding this.
  • With battery at actual voltage at 342v inverter senses this at 336v (6v lower I dont know why). Min/Max set to 300v/399v:
  • if I send <150v it goes back to waiting (not battvoltfault)
  • if I send 151v/245v works fine
  • If you send no voltage on frame 1872 then it just stays in "Waiting" mode
  • Like others said before you dont seem to need the announce 0100a001 frame or even respond to the 1871 frame the inverter sends every 1000ms. I am sending all frames every 900ms at a non-synced interval and it plays fine.

All credits to the guys from this thread.

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
