Information on re-using the 13.8 kWh lithium-ion polymer battery out of a 2018-Present Hyundai Santa Fe PHEV vehicle.

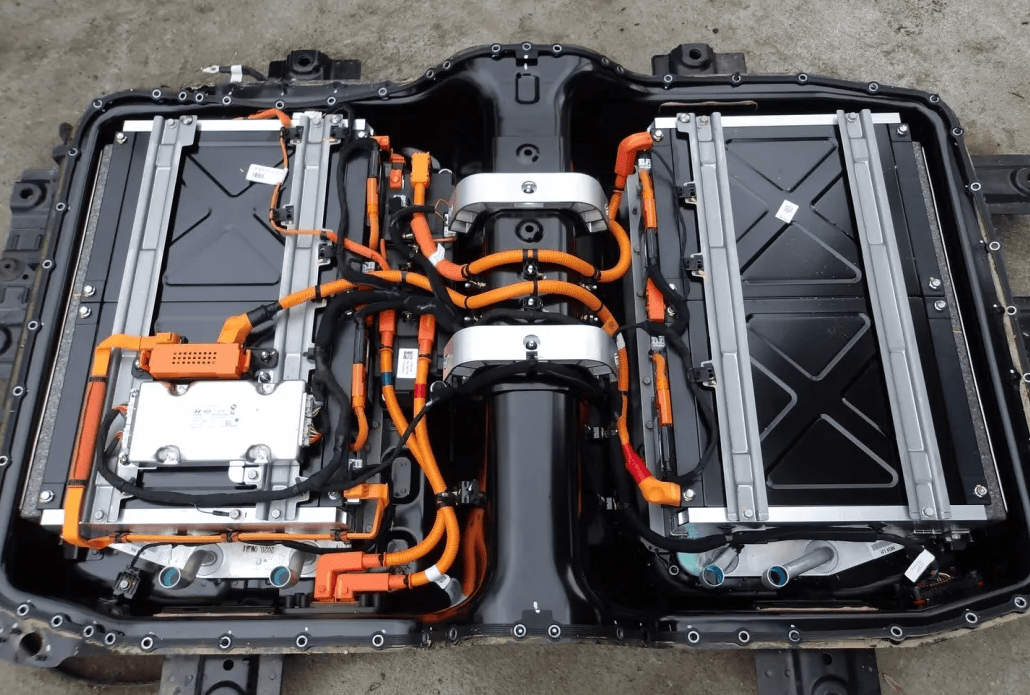

ℹ️ The pack is separated in two packs, be sure to get both pieces!

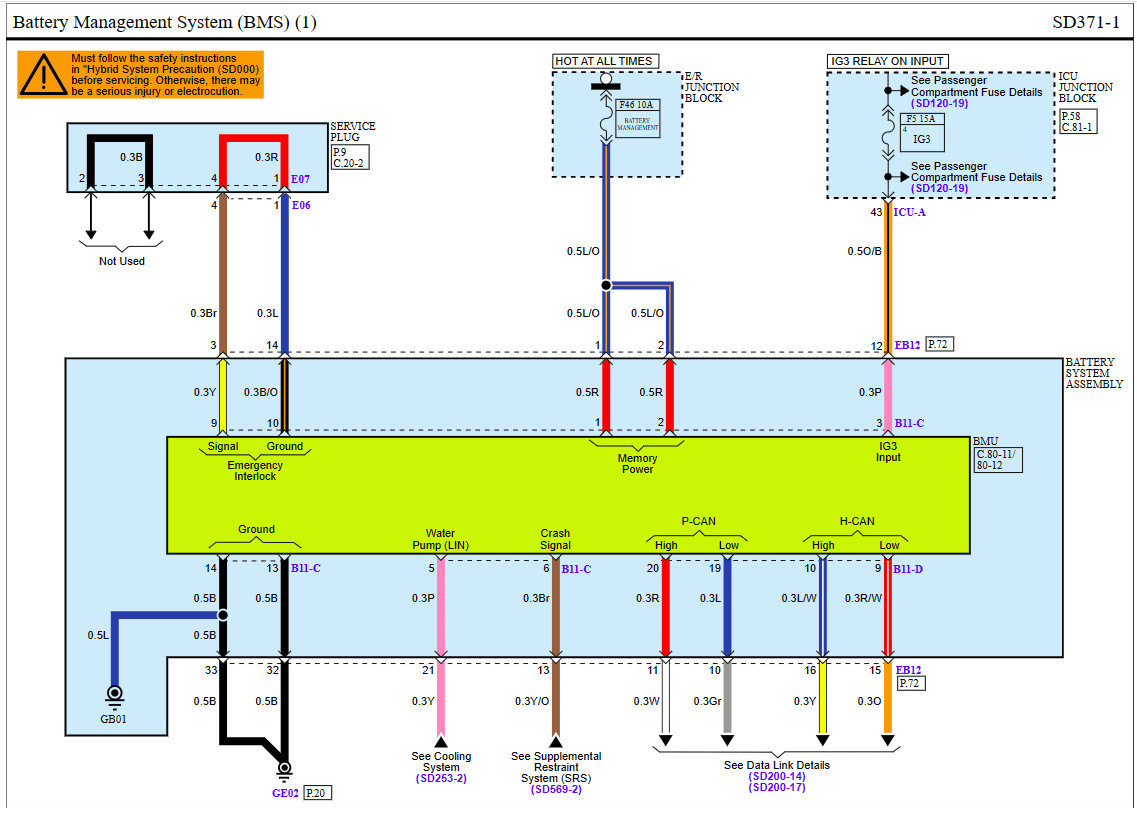

Communication wiring~


ℹ️ Note, the P-CAN and H-CAN networks need to be joined together. The Battery-Emulator needs to send messages towards both CAN buses for the battery to be able to close contactors.

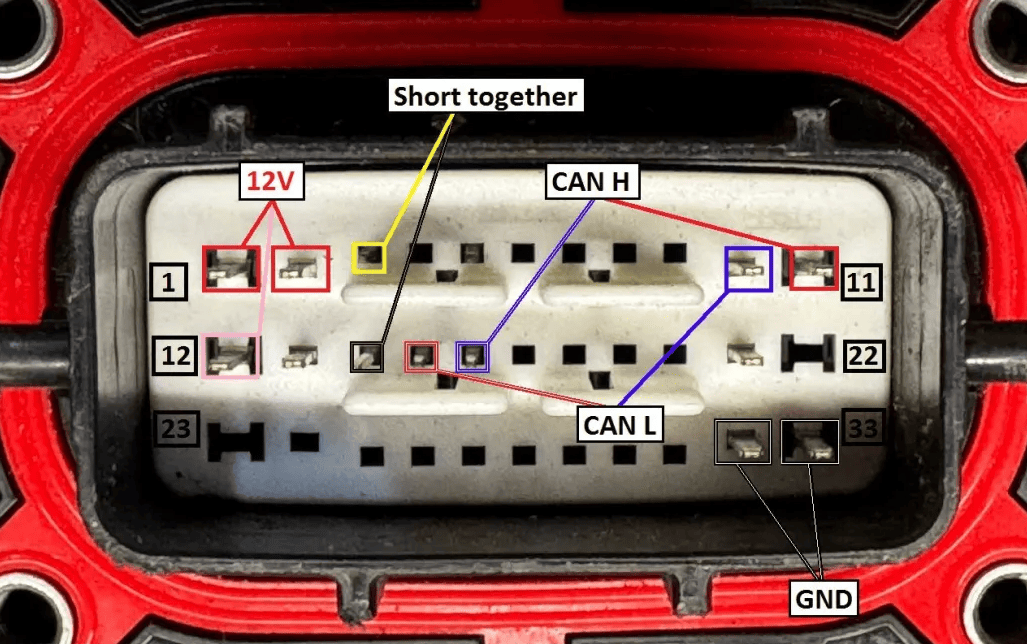

Connect the following:

  • P/H-CAN High - To CAN-H on the board
  • P/H-CAN Low - To CAN-L on the board
  • Pin 1 & 2 - To 12V supply
  • Pin 3 & 14 - Short together by installing the Service Plug
  • Pin 33 & 32 - To GND for 12V supply
  • Pin 12 - To 12V Supply (this is the wakeup signal)


Software configuration~

For this battery type, use the option called "Santa Fe PHEV" under the "Battery Protocol" setting.


Credits~

Credits go to maciek16c for the CAN findings! Massive thanks to GoSmart on the Discord for testing this! github/maciek16c openinverter

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
