Aiways U5 (2021)

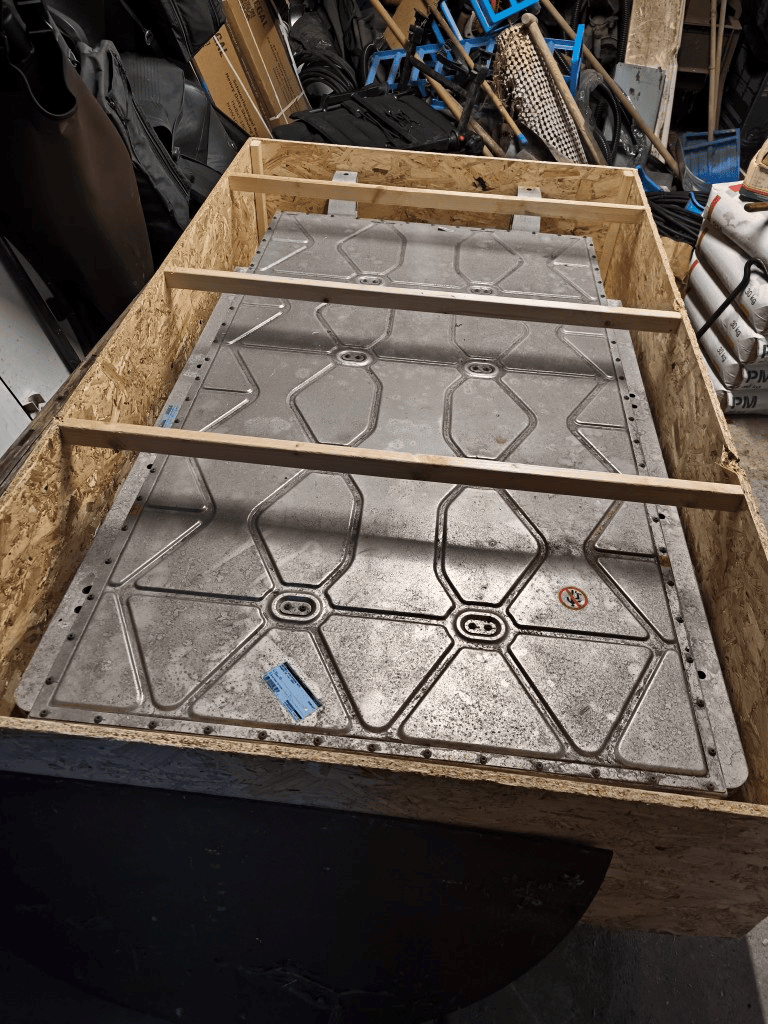

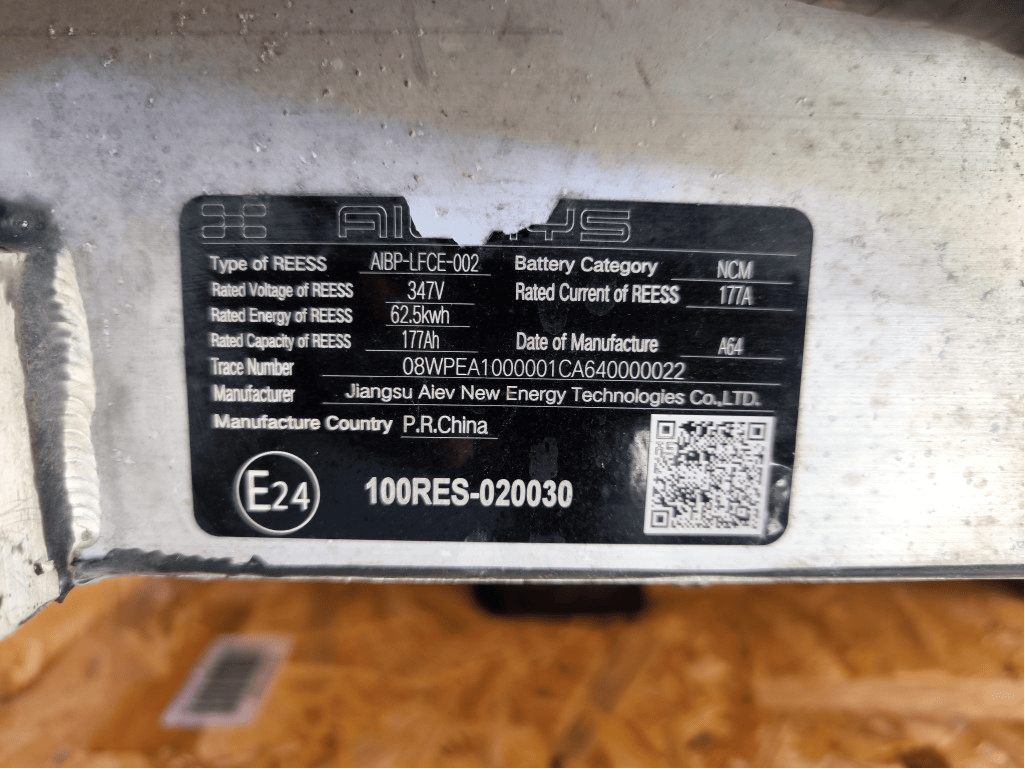

Battery Aiways U5

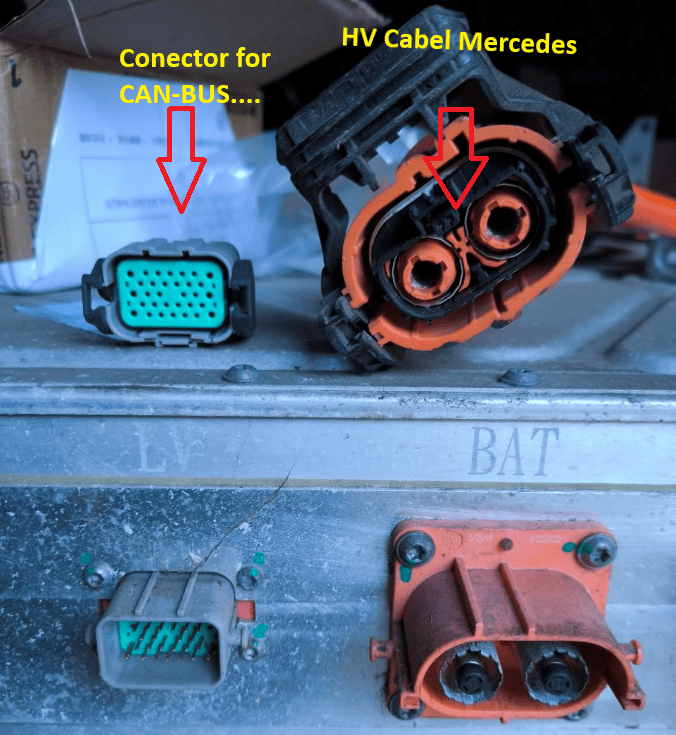

Connectors for HV-Connector and Connector Information (CAN-BUS)

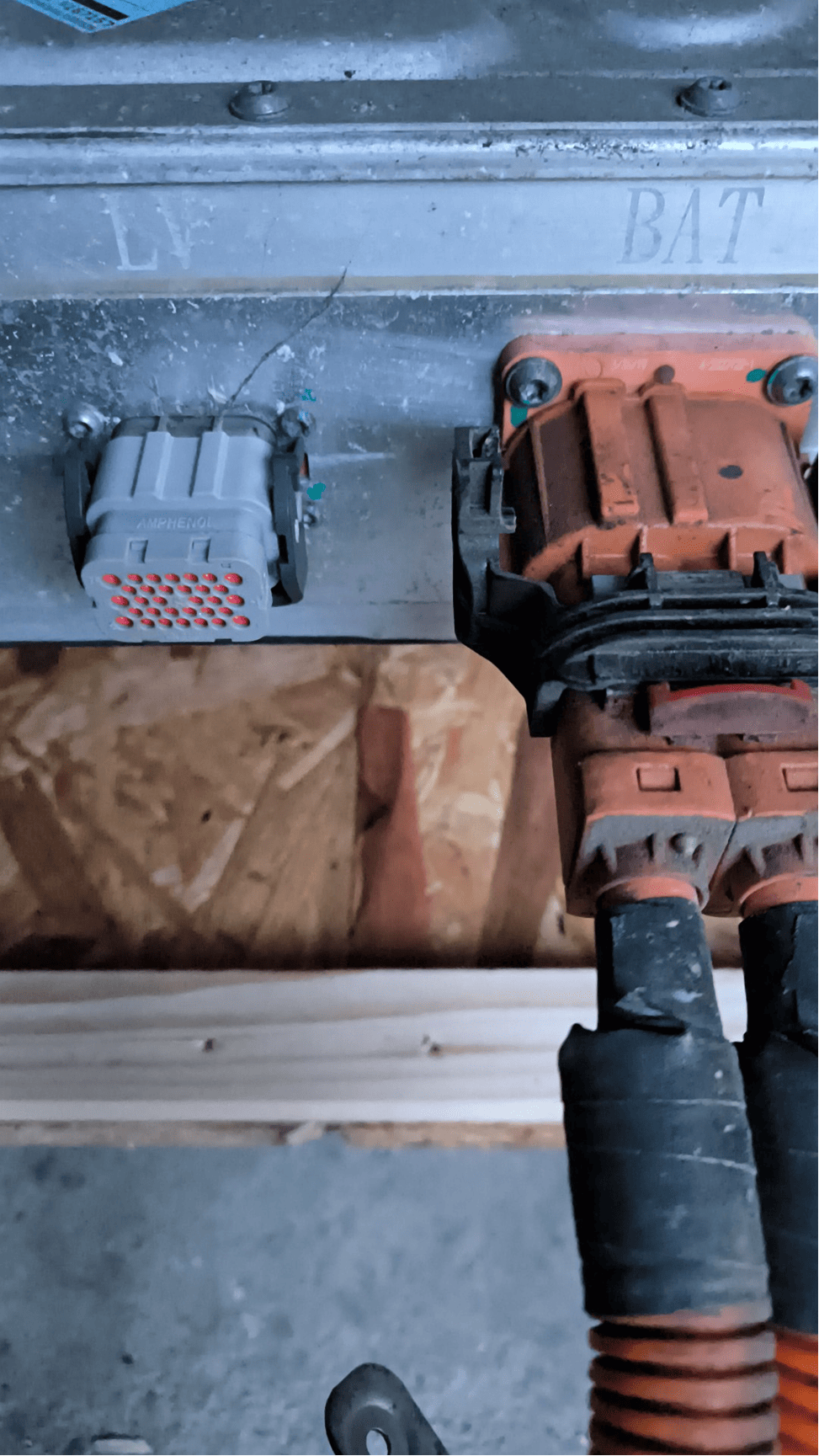

Aiways high-voltage battery with plug-in connectors

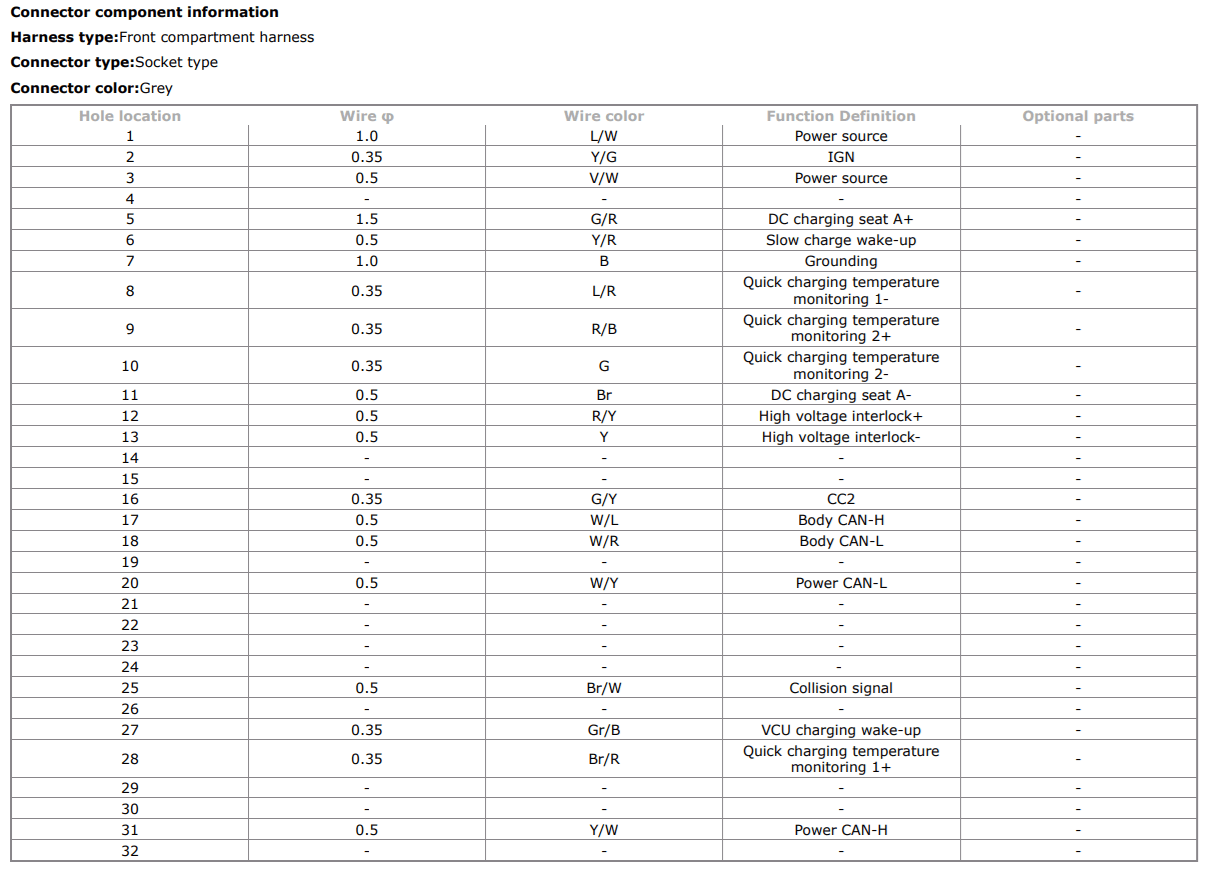

Pin assignment

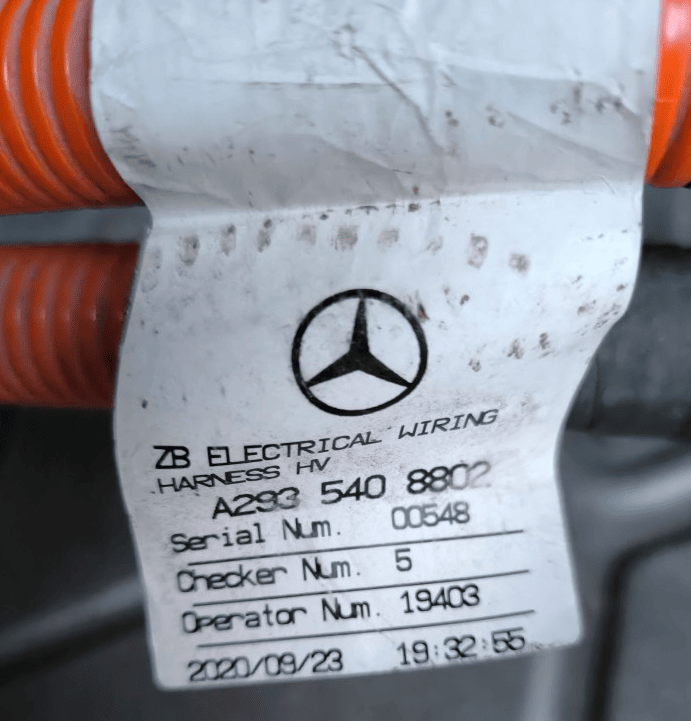

suitable high-voltage battery cable for Mercedes, Various models fit (for example, the EQC).

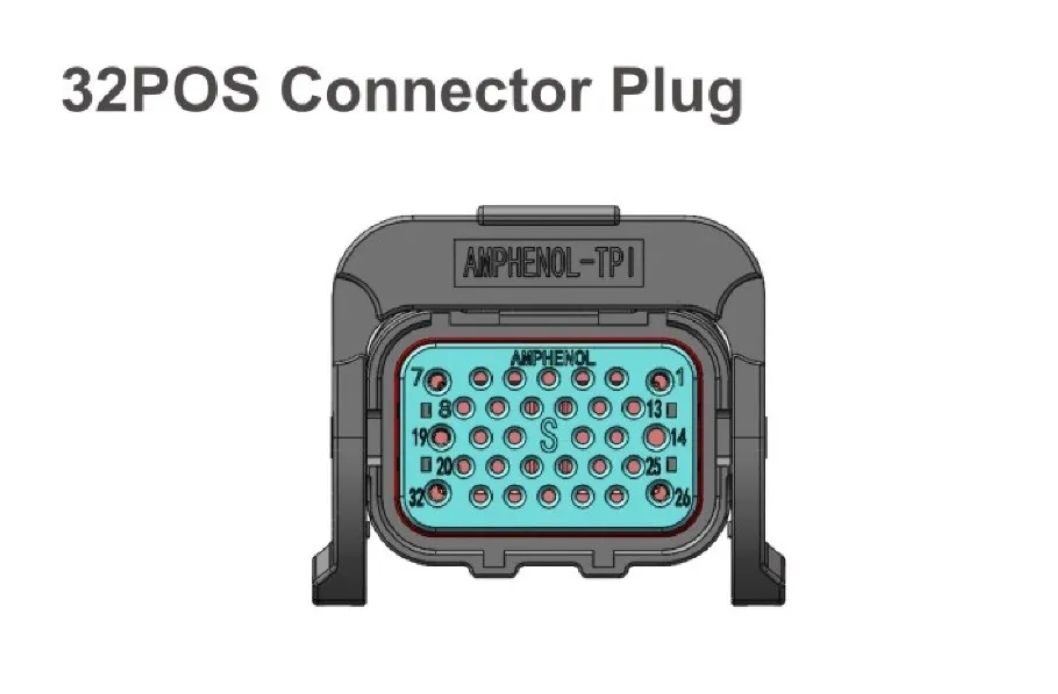

Suitable connector for the information port of the high-voltage - battery HC18B-S32 AMPEHENOL32 You can AMPHENOL 32 Core New Energy EV-Connector HC18B-S32 buy it on AliExpress at this link: aliexpress

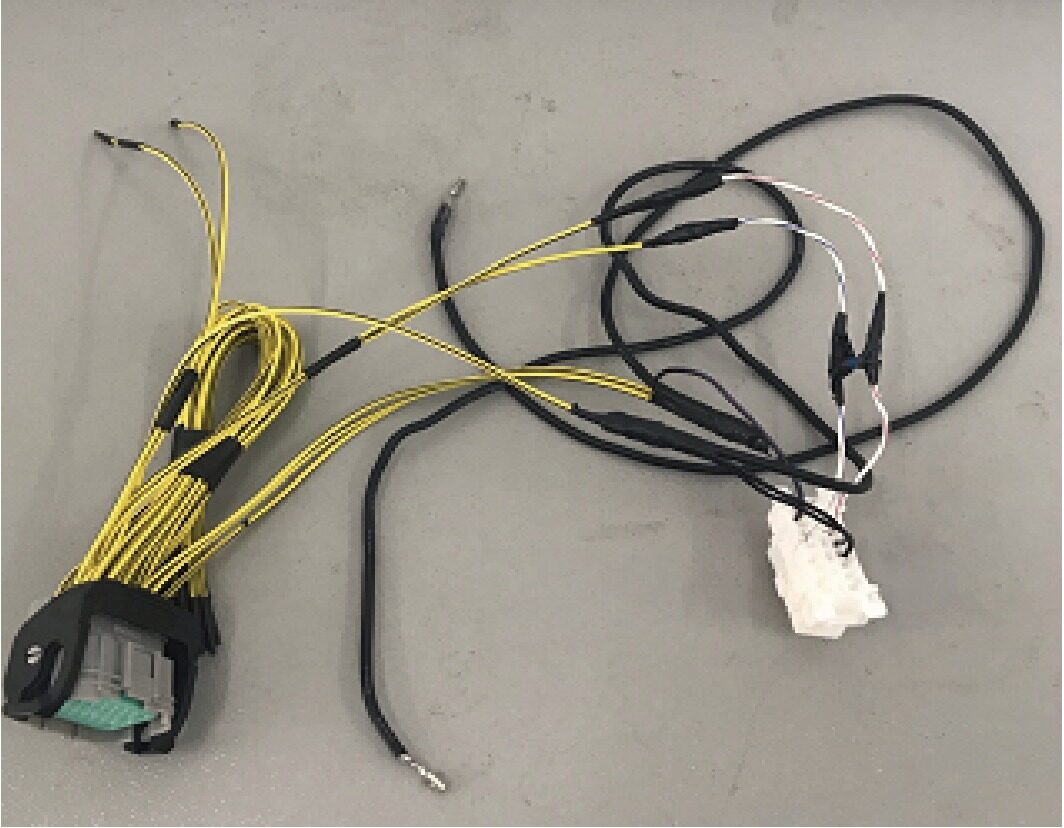

Genuine Aiways adapter for reading battery data via the OBD2 port. ADAPTER_ODB2_

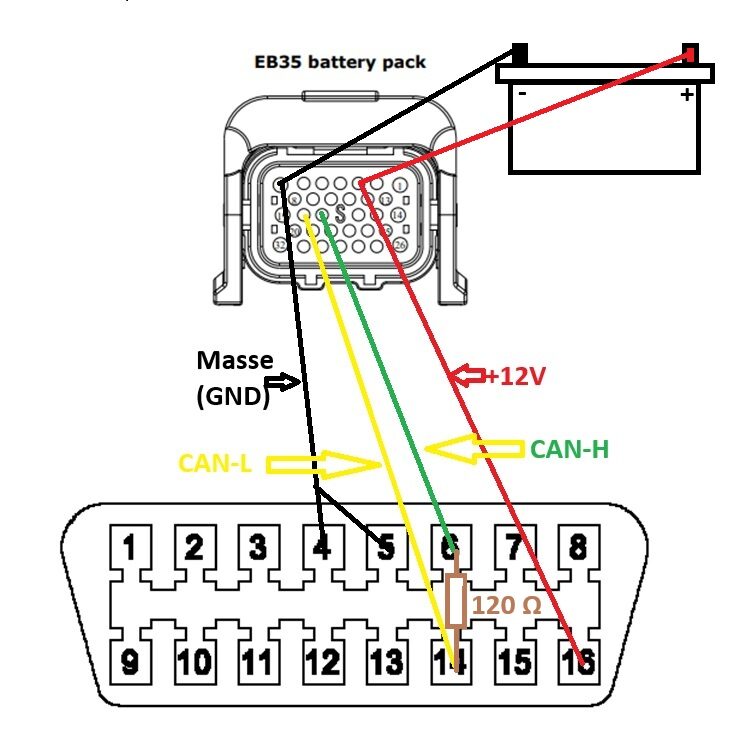

Pinout for the adapter (Caution – not yet tested!!) Adapterchema

I think two 12-volt connections are still missing on the 32-pin connector plug side for High voltage interlock+ and High voltage interlock-.

Connection to a hybrid inverter is coming soon...

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
