BYD Dolphin Seal Seagull

WIP

Wiring diagrams

Here are some different Dolphin generation diagrams. There are many variants of these packs.

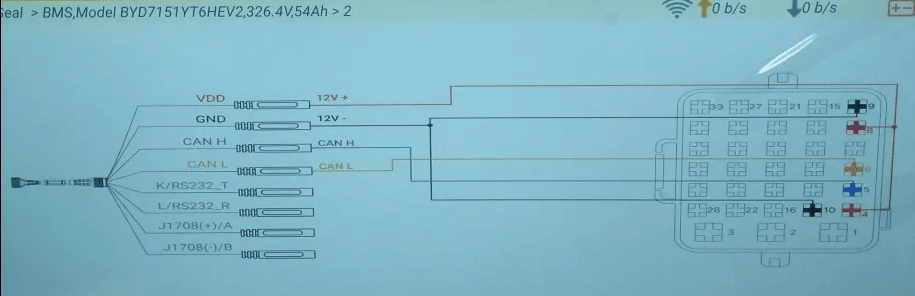

Dolphin variant 1 & 3 (Same as BYD Atto 3)

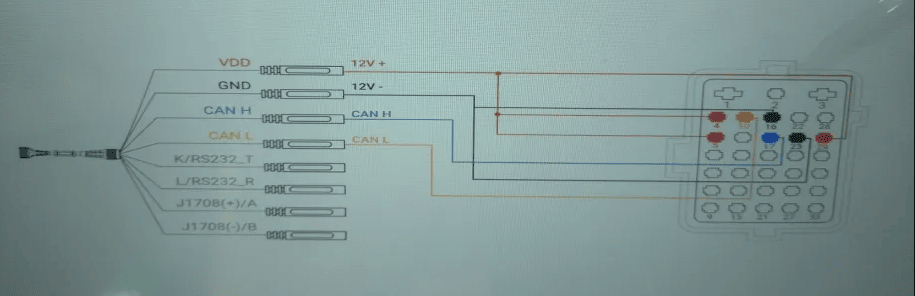

Dolphin variant 2 (Same as Dolphin Seal)

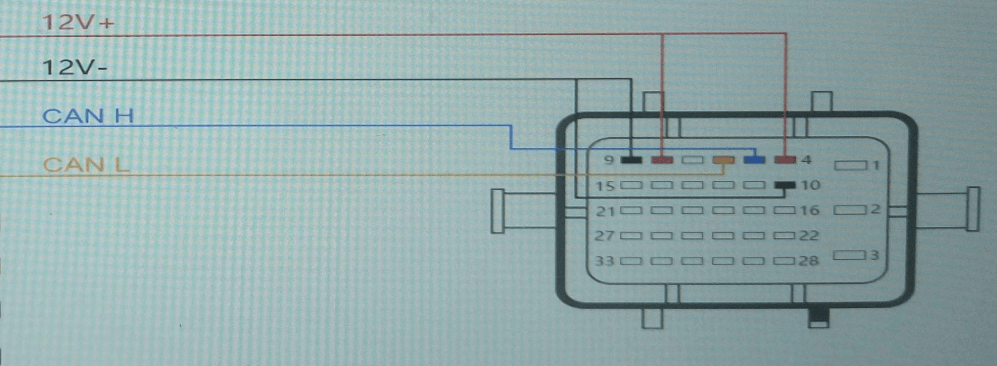

Seal variant 4

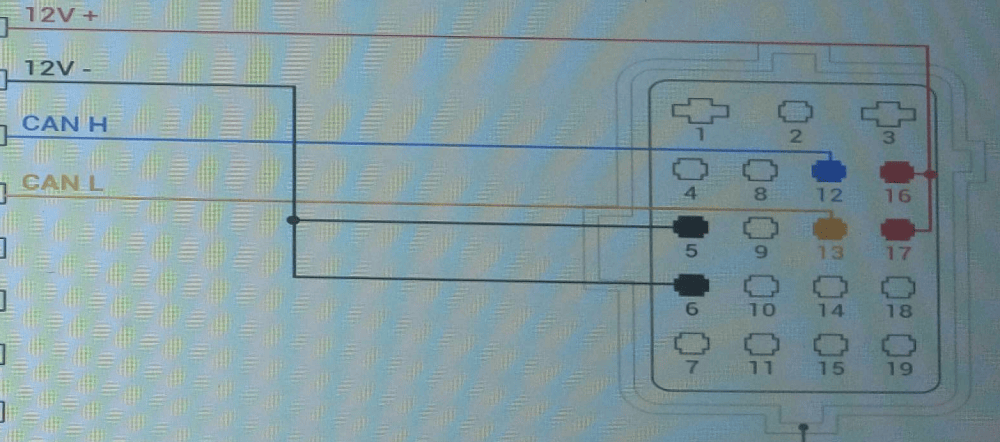

Seagull

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
