Fisker Ocean

The Fisker Ocean was produced between 2022-2024, and came with three battery variants.

• 73kWH LFP
• 113kWh NMC
• 106kWh NMC

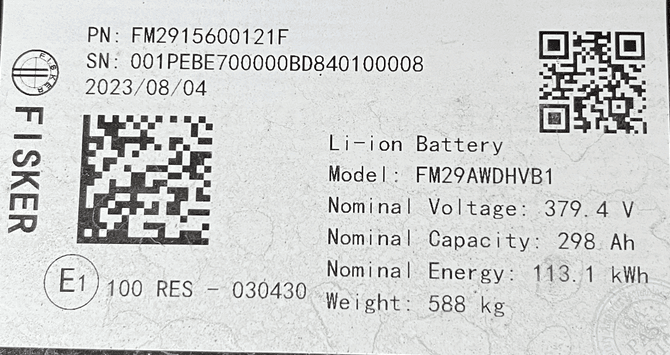

The type label on the battery specifies the capacity

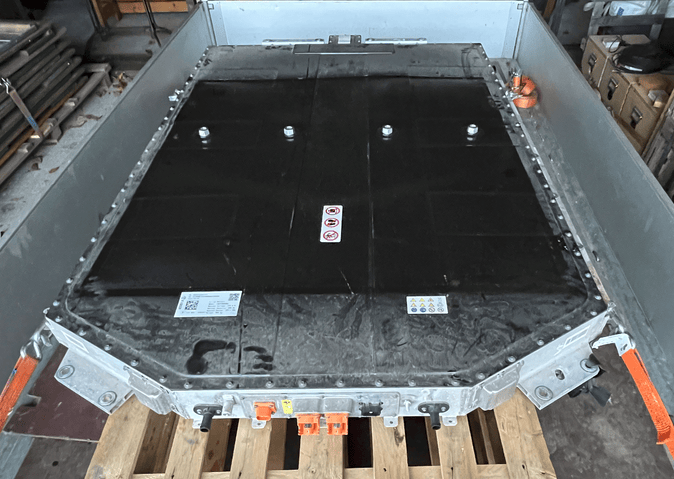

Battery overview

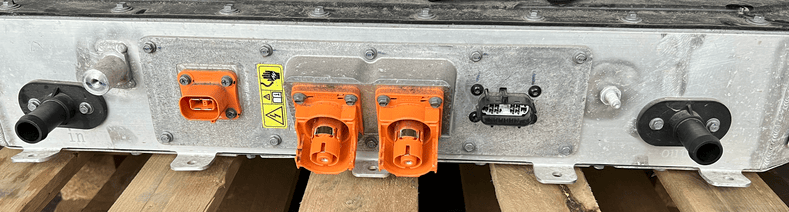

The front connectors has coolant ports, HV and LV connectors. On the back of the battery there is another HV connection.

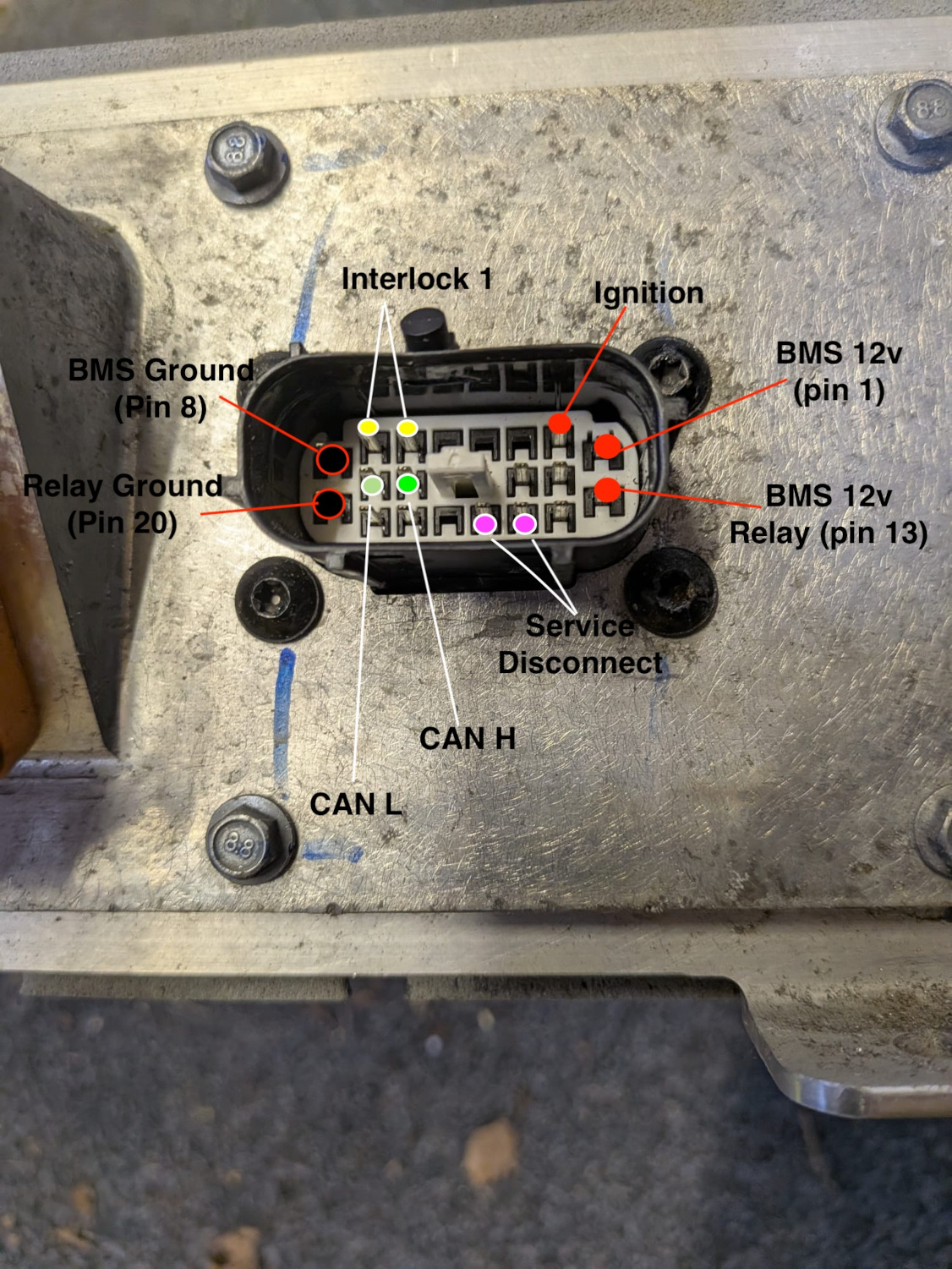

Low voltage connector

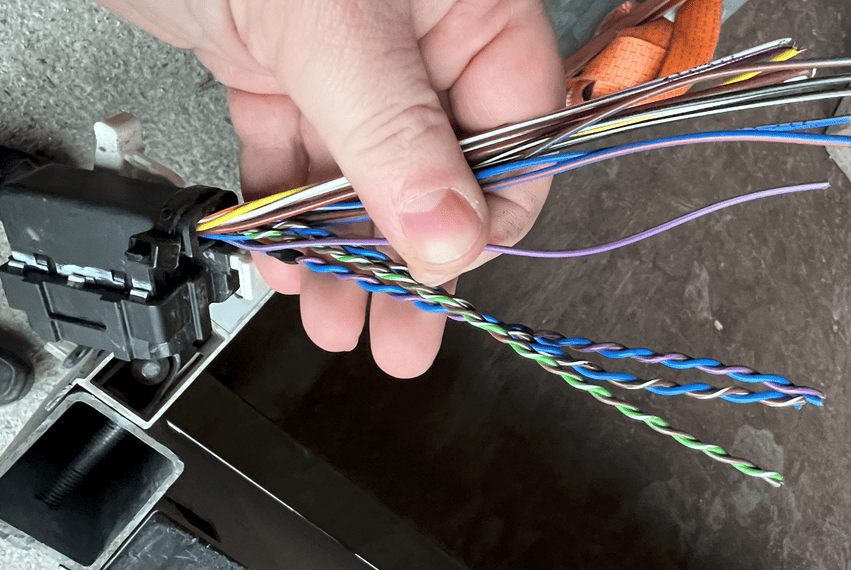

The low voltage connector has three CAN channels. The following pins are required:

• KL30: Brown/Red wire (permanent 12V)
• KL15: Brown/Blue wire (246mA draw)
• GND: Black/White (chassis)
• CAN H: Blue wire → CANHB
• CAN L: Violet wire → CANLB

DTCs

• U120088;ACANBusOffFlt - Bus off;0xd20088
• U025582;ACANComFlt - Alive / Sequence Incorrect / Not Updated;0xc25582
• P11D829;AllCurrSensorInvalid - Signal Invalid;0x11d829
• P120516;BMSSupplyVolHighFlt - Circuit Voltage Above Threshold;0x120516
• P12051C;BMSSupplyVolLowFlt - Circuit Voltage Below Threshold;0x12051c
• P120D94;BMSUnExpectPowerDownFlt - Unexpected Power Down;0x120D94
• P124400;BMUCmce2E - No Sub Type Information;0x124400
• P121674;BalCircuitFlt - Actuator Slipping;0x121674
• P12044B;BalCircuitTemHighFlt - Over Temperature;0x12044b
• P120496;BalCircuitTemInvalidFlt - Component Internal Failure;0x120496
• P118964;BatteryToG0OpenOrSTGFlt - Signal Plausibility Failure;0x118964
• P118965;BatteryToGoOutOfRangeFlt - Signal Has Too Few Transitions / Events;0x118965
• P160291;CSUResetFlt - Parametric;0x160291
• P118722;CellTempDiffHighLevel1 - Signal Amplitude > Maximum;0x118722
• P160148;CellTempHighLevel1 - Supervision Software Failure;0x160148
• P160149;CellTempHighLevel2 - Internal Electronic Failure;0x160149
• P119321;CellTempLowLevel1 - Signal Amplitude < Minimum;0x119321
• P118522;CellUnbalanceFlt - Signal Amplitude > Maximum;0x118522
• P118822;CellVolHighLevel1 - Signal Amplitude > Maximum;0x118822
• P121C01;CellVolHighLevel2 - General Electrical Failure;0x121c01
• P160123;CellVolHighLevel4 - Signal Stuck Low;0x160123
• P160114;CellVolLowLowLevel1 - Circuit Short to Ground or Open;0x160114
• P160115;CellVolLowLowLevel2 - Circuit Short To Battery or Open;0x160115
• P118E21;CellVolLowLevel3 - Signal Amplitude < Minimum;0x118e21
• P126004;CellVolOverRange - System Internal Failure;0x126004
• P121229;CellVolSampleWireOpenFlt - Signal Invalid;0x121229
• P160131;ChrgCurHighLevel1 - No Signal;0x160131
• P160132;ChrgCurHighLevel2 - Signal Low Time < Minimum;0x160132
• P160133;ChrgCurHighLevel3 - Signal Low Time > Maximum;0x160133
• P160310;CurMeasureMessageCRCFlt - ISO/SAE Reserved;0x160310
• P160307;CurMeasureMessageLostFlt - Mechanical Failure;0x160307
• P160312;CurMesRCFlt - Circuit Short To Battery;0x160312
• P160128;DisChrgCurHighLevel1 - Signal Bias Level Out of Range / Zero Adjustment Failure;0x160128
• P160129;DisChrgCurHighLevel2 - Signal Invalid;0x160129
• P118111;DisChrgCurHighLevel3 - Circuit Short To Ground;0x118111
• P126031;ExtWDEr - No Signal;0x126031
• P160245;GOasDatumPointRefVoltOutOfRangeFlt - Program Memory Failure;0x160245
• P160243;GOasDatumPointSPIFlt - Special Memory Failure;0x160243
• P126010;GIasDatumPointRefVoltOutOfRangeFlt - ISO/SAE Reserved;0x126010
• P126009;GIasDatumPointSPIFlt - Component Failure;0x126009
• P0A0A94;HVILOpenFlt - Unexpected Operation;0xa0a094
• P123D12;HVILShortToGNDFlt - Circuit Short To Battery;0x123d12
• P123D11;HVILShortToVCCFlt - Circuit Short To Ground;0x123d11
• P123D13;HVILOpenFlt - Circuit Open;0x123d13
• P123D15;HVILShortToGNDFlt - Circuit Short To Battery or Open;0x123d15
• P123D15;Hvil2ShortToGNDFlt - Circuit Short To Battery or Open;0x123d15
• P123D14;HVIL2ShortToVCCFlt - Circuit Short To Ground or Open;0x123d14
• P12231A;HVPoAndHVNeglsoFlt - Circuit Resistance Below Threshold;0x12231a
• P160102;HVRelayCloseFlt1 - General Signal Failure;0x160102
• P0AA61A;HVRelayCloseFlt2 - Circuit Resistance Below Threshold;0x0xa61a
• P160103;HVRelayOpenFlt1 - FM (Frequency Modulated) / PWM (Pulse Width Modulated) Failure;0x160103
• P120A1A;HVRelayOpenFlt2 - Circuit Resistance Below Threshold;0x120a1a
• P160098;InletWaterTempSensorFlt - Component or System Over Temperature;0x160098
• P126030;IntWDError - ISO/SAE Reserved;0x126030
• P11D729;IsoDetectCircuFlt - Signal Invalid;0x11d729
• P126002;KL30VolOutOfRangetoHighFlt - General Signal Failure;0x126002
• P126001;KI30VolOutOfRangetoLowFlt - General Electrical Failure;0x126001
• P126033;PCALFlt - Signal Low Time > Maximum;0x126033
• P126025;McAUDCFlt - Signal Shape / Waveform Failure;0x126025
• P0AA572;MainRelayOpenFlt - Actuator Stuck Open;0xa572
• P0AA473;MainNegRelayWeldFlt - Actuator Stuck Closed;0xa473
• P160212;MainNegativeContactorCoilCircuitOpenFlt - Circuit Short To Battery;0x160212
• P160210;MainNegativeContactorCoilCircuitShortToGNDFault - ISO/SAE Reserved;0x160210
• P160211;MainNegativeContactorCoilCircuitShortToPowerFault - Circuit Short To Ground;0x160211
• P160168;MainPosOrPreChrgRelayWeldFlt - Event Information;0x160168
• P0AA272;MainPosRelayOpenFlt - Actuator Stuck Open;0xa0a272
• P160254;MainPosToG0OpenStGFlt - Missing Calibration;0x160254
• P160255;MainPosToG0OutOfRangeFlt - Not Configured;0x160255
• P160208;MainPositiveContactorCoilCircuitOpenFault - Bus Signal / Message Failure;0x160208
• P160206;MainPositiveContactorCoilCircuitShortToGNDFault - Algorithm Based Failure;0x160206
• P160207;MainPositiveContactorCoilCircuitShortToPowerFault - Mechanical Failure;0x160207
• P126024;McuHwSelfTestFlt - Signal Stuck High;0x126024
• P126039;MemoryInvalidFlt_Level1 - Signal Has Too Few Pulses;0x126039
• P126003;ModuleVolDiffHighFlt - FM (Frequency Modulated) / PWM (Pulse Width Modulated) Failure;0x126003
• P126023;NTCImPlusModerateFlt - Signal Stuck Low;0x126023
• P126029;NVRAMError - Signal Invalid;0x126029
• P0A9513;PackHighVolCircuitOpenFlt - Circuit Open;0xa9513
• P160036;PackSoCHigh - Signal Frequency Too Low;0x160036
• P160037;PackSoCLow - Signal Frequency Too High;0x160037
• P122184;PackSoCHLowLevel1 - Signal Below Allowable Range;0x122184
• P122284;PackSoCHLowLevel2 - Signal Below Allowable Range;0x122284
• P160164;PackVolHighLevel1 - Signal Plausibility Failure;0x160164
• P160166;PackVolLowLevel1 - Signal Has Too Many Transitions / Events;0x160166
• P160167;PackVolLowLevel2 - Signal Incorrect After Event;0x160167
• P122019;PreChrgCurHigh - Circuit Current Above Threshold;0x122019
• P0AE372;PreChrgRelayOpenFlt - Actuator Stuck Open;0xae372
• P122011;PreChrgShortCircuit - Circuit Short to Ground;0x122011
• P122001;PreChrgTimeout - General Electrical Failure;0x122001
• P160216;PreChrgContactoilCircuitOpenFault - Circuit Voltage Below Threshold;0x160216
• P160215;PreChrgContactoilCircuitShortTPowerFault - Circuit Short to Battery or Open;0x160215
• P160214;PreChrgContactoilCircuitShortToGNDFault - Circuit Short to Ground or Open;0x160214
• P122092;PreChrge_too_much_in_short_time - Performance or Incorrect Operation;0x122092
• P126011;PrimaryCurMeasureMessageCRCFlt - Circuit Short to Ground;0x126011
• P120987;PrimaryCurMeasureMessageLostFlt - Missing Message;0x120987
• P118966;PrimaryCurSensorFlt - Signal Has Too Many Transitions / Events;0x118966
• P160524;PrimaryCurSensorZeroDriftHighFlt - Signal Stuck High;0x160524
• P126012;PrimaryCurresRCFlt - Circuit Short To Battery;0x126012
• P126013;PrimaryCurOutOfRange - Circuit Open;0x126013
• P126015;PrimaryCurDeviFlt - Circuit Short to Battery or Open;0x126015
• P126027;RAMError - Signal Rate of Change Above Threshold;0x126027
• P160342;RTCChipAbnormalFlt - General Memory Failure;0x160342
• P160134;ReChrCurHighLevel1 - Signal High Time < Minimum;0x160134
• P160135;ReChrCurHighLevel2 - Signal High Time > Maximum;0x160135
• P160136;ReChrCurHighLevel3 - Signal Frequency Too Low;0x160136
• P126032;RegisterError - Signal Low Time < Minimum;0x126032
• P160013;RelaySupplyPowerVolHighFlt - Circuit Open;0x160013
• P160010;RelaySupplyPowerVolLowFlt - ISO/SAE Reserved;0x160010
• P126037;SBCPwrToExtFlt_Level1 - Signal Frequency Too High;0x126037
• P126038;SBCPwrToExtFlt_Level2 - Signal Frequency Incorrect;0x126038
• P126035;SBCPwrToIntFlt_Level1 - Signal High Time > Maximum;0x126035
• P126036;SBCPwrToIntFlt_Level2 - Signal Frequency Too Low;0x126036
• P126034;SBCSelfTestFlt - Signal High Time < Minimum;0x126034
• U120388;SCANBusOffFlt - Bus off;0x20388
• U120308;SCANComFlt - Bus Signal / Message Failure;0x20308
• P26022;SampleChipHardwareFlt - Signal Amplitude > Maximum;0x126022
• P160532;SecondaryCurSensorZeroDriftHighFlt - Signal Low Time < Minimum;0x160532
• P126014;SecondaryCurOutOfRange - Circuit Short To Ground or Open;0x126014
• P126019;TempSensorCriticalHighFlt - Circuit Current Above Threshold;0x126019
• P126020;TempSensorCriticalLowFlt - ISO/SAE Reserved;0x126020
• P21429;TempSensorMinorFlt - Signal Invalid;0x121429
• P126017;TempSensorOutofRangeHighFlt - Circuit Voltage Above Threshold;0x126017
• P126018;TempSensorOutofRangeLowFlt - Circuit Current Below Threshold;0x126018
• P21FA29;TempSensorSeriousFlt - Signal Invalid;0x12fa29
• P126000;TempSensorValueE2Flt - No Sub Type Information;0x126000
• P160344;TempSoftwareExpirationFlt - Data Memory Failure;0x160344
• P160343;TempSoftwareReminderOfDueDate - Special Memory Failure;0x160343
• P160363;ThermalRunawayDetectionCircuitOpnFlt - Circuit / Component Protection Time Out ;0x160363
• P126026;UnExpectRestFlt - Signal Rate of Change Below Threshold;0x126026
• P11D730;VCU_EccCoolantdefeat - ISO/SAE Reserved;0x11d730
• P160165;PackVolHighLevel2 - Signal Has Too Few Transitions;0x160165
• P126044;BMSCalbPSLowPowerParFit - Data Memory Failure;0x126044
• P160038;BMS_SystemError_OmissionOfKL15 - Signal Frequency Incorrect;0x160038
• P126043;BPSToBMSHardwareupFault - Special Memory Failure;0x126043
• P126045;BatteryPressureMessageLost - Program Memory Failure;0x126045
• P126042;BatteryPressureSensorFlt - General Memory Failure;0x126042
• P0A7E22;CellTempHighLevel3 - Signal Amplitude > Maximum;0xa7e22
• P160061;CrashFromHardwarePWMFlt - Signal Calculation Failure;0x160061
• P160062;CrashFromHardwarePWMSlightFlt - Signal Compare Failure;0x160062
• P160065;CrashPWMAbnormal - Signal Has Too Few Transitions / Events;0x160065
• P160066;CrashPWMAbnormal - Signal Has Too Many Transitions / Events;0x160066
• P160064;CrashPWMShortToGNDFlt - Signal Plausibility Failure;0x160064
• P160063;CrashPWMShortToVsorOpen - Circuit / Component Protection Time-Out;0x160063
• P123D16;HVIL3OpenFlt - Circuit Voltage Below Threshold;0x123d16
• P123D18;HVIL3ShortToGNDFlt - Circuit Current Below Threshold;0x123d18
• P123D17;HVIL3ShortToVCCFlt - Circuit Voltage Above Threshold;0x123d17
• P160228;MainNegCnctrAgeLevel1Flt - Signal Bias Level Out of Range / Zero Adjustment Failure;0x160228
• P160229;MainNegCnctrAgeLevel2Flt - Signal Invalid;0x160229
• P160169;MainNegRelayWeldFlt - ISO/SAE Reserved;0x160169
• P160226;MainPosCnctrAgeLevel1Flt - Signal Rate of Change Below Threshold;0x160226
• P160227;MainPosCnctrAgeLevel2Flt - Signal Rate of Change Above Threshold;0x160227
• P160173;MainPosOrMainNegRelayWeldFlt - Actuator Stuck Closed;0x160173
• P160099;OutletWaterTemSensorFlt - Exceeded Learning Limit;0x160099
• P125098;OverTempLvl4Flt - Component or System Over Temperature;0x125098
• P160230;PreChrgcCnctrAgeLevel1Flt - ISO/SAE Reserved;0x160230
• P160231;PreChrgcCnctrAgeLevel2Flt - No Signal;0x160231
• P126028;ROMError - Signal Bias Level Out of Range / Zero Adjustment Failure;0x126028
• P123A24;ThermalRunawayFlt - Signal Stuck High;0x123a24
• P120886;VCUComCheckFlt - Signal Invalid;0x120886
• P160290;PrimaryCurrSCECCDOUBLEFlt;0x160290
• P160522;PrimaryCurrSUECCDOUBLEFlt;0x160522
• P160509;PrimaryCurrStatusMessageLostFlt;0x160509
• P160519;PrimaryCurrSTemHighFit;0x160519
• P160521;PrimaryCurrSTemHighFit2;0x160521
• P160510;PrimaryCurrentSensorReportSupplyVoltageFlt;0x160510
• P160531;SecondaryCurrentSensorReportSupplyVoltageHighFlt;0x160531
• P160530;SecondaryCurrentSensorReportSupplyVoltageLowFlt;0x160530
• P11D732;SbCTCD_PVNegCnctrStuckCloseFlt - Signal Low Time < Minimum;0x11d732
• P11D733;SbCTCD_PVPosCnctrStuckCloseFlt - Signal Low Time > Maximum;0x11d733
• P11D731;SbCTCD_PVPosCnctrStuckOpenFlt - No Signal;0x11d731
• P160294;PVNegCnctrAgeLevel1Flt;0x160294
• P160295;PVNegCnctrAgeLevel2Flt;0x160295
• P160292;PVPosCnctrAgeLevel1Flt;0x160292
• P160293;PVPosCnctrAgeLevel2Flt;0x160293
• P125016;CellVoltLowLevel4;0x125016
• P160146;OCLevel2_Charge;0x160146
• P160142;OCLevel2_Discharge;0x160142
• U025583;VCUComFlt;0xc25583
• P160301;NTCImPlausMinorFlt;0x160301
• P160303;NTCImPlausSeriousFlt;0x160303

CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
