Maxus eD3

Maxus eDeliver 3. There are different battery models:

  • 35kWh / 52.5kWh NCM by UABC "United Auto Battery System Co.,Ltd" (model year 2020, 2021)

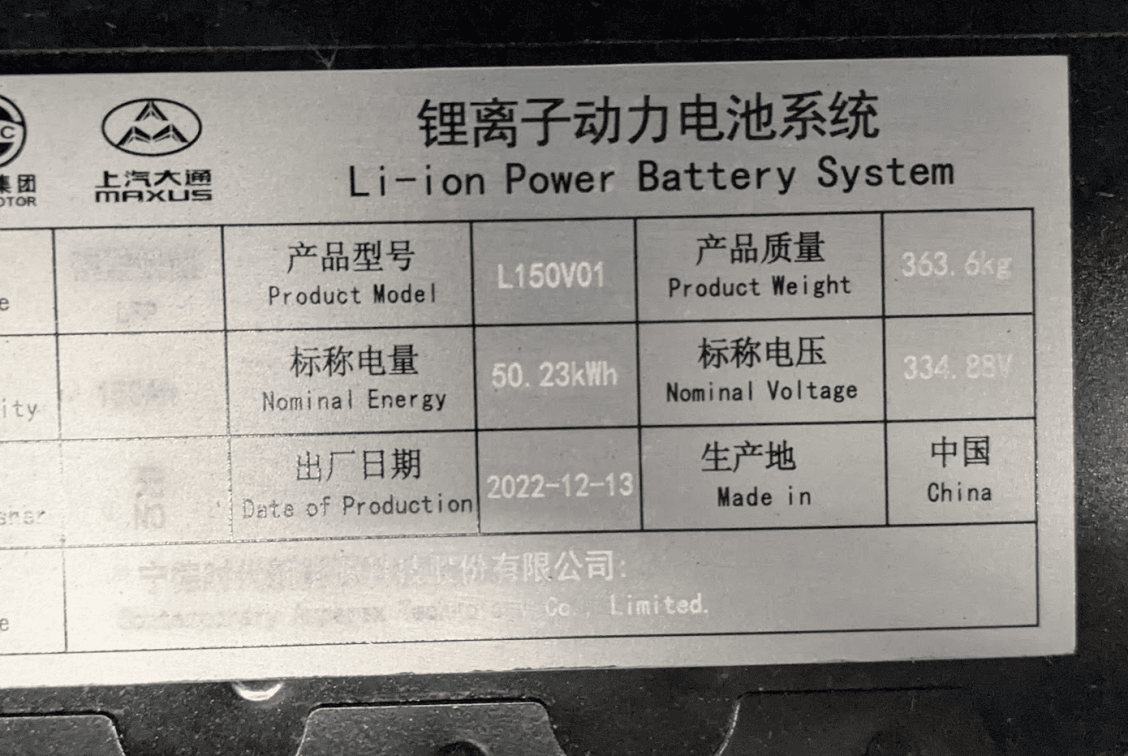

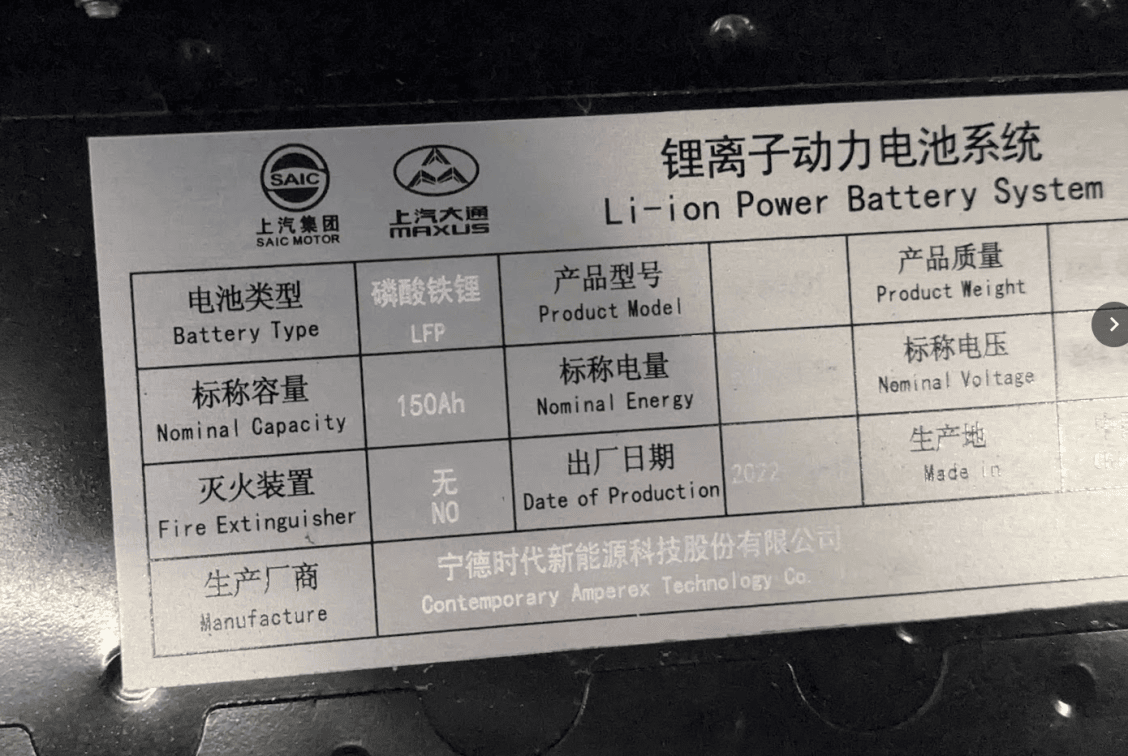

  • 50,2 kWh LFP by CATL "Contemporary Amperex Technology Co., Limited" (model year 2022+)



Battery overview~

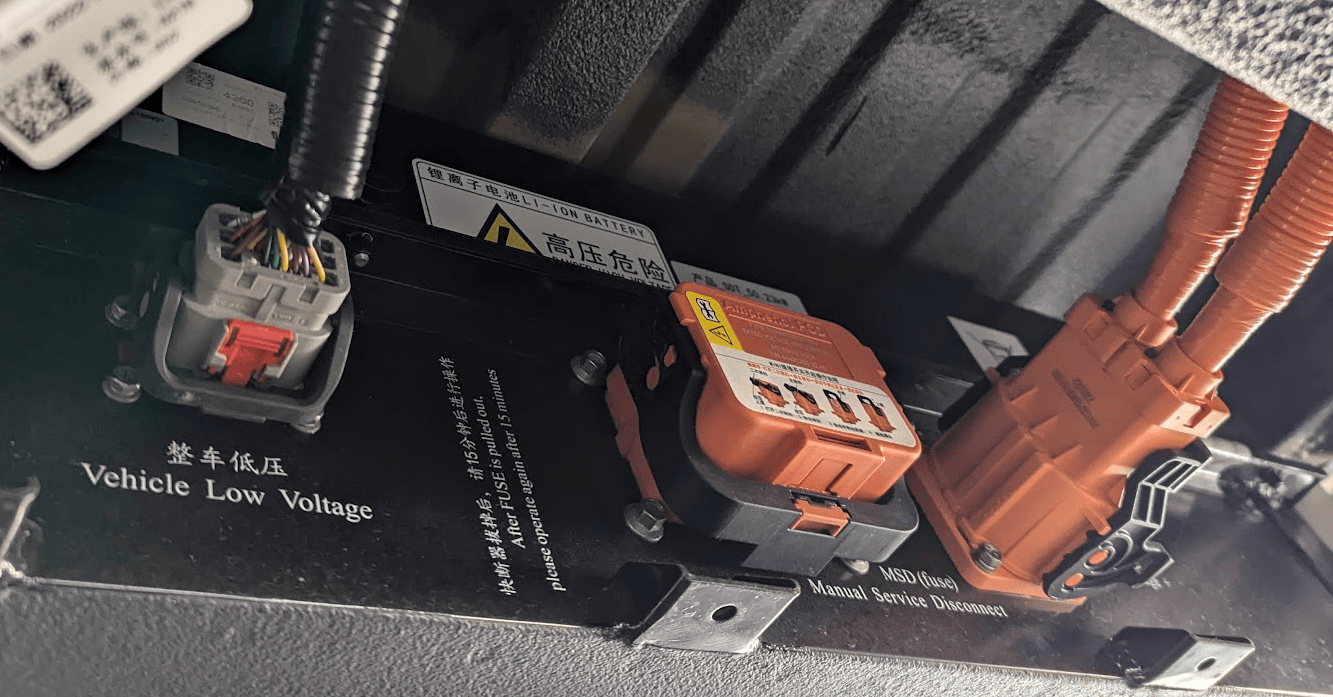

Left to right, Low voltage connector, service disconnect switch, high voltage connector.

Low voltage wiring~

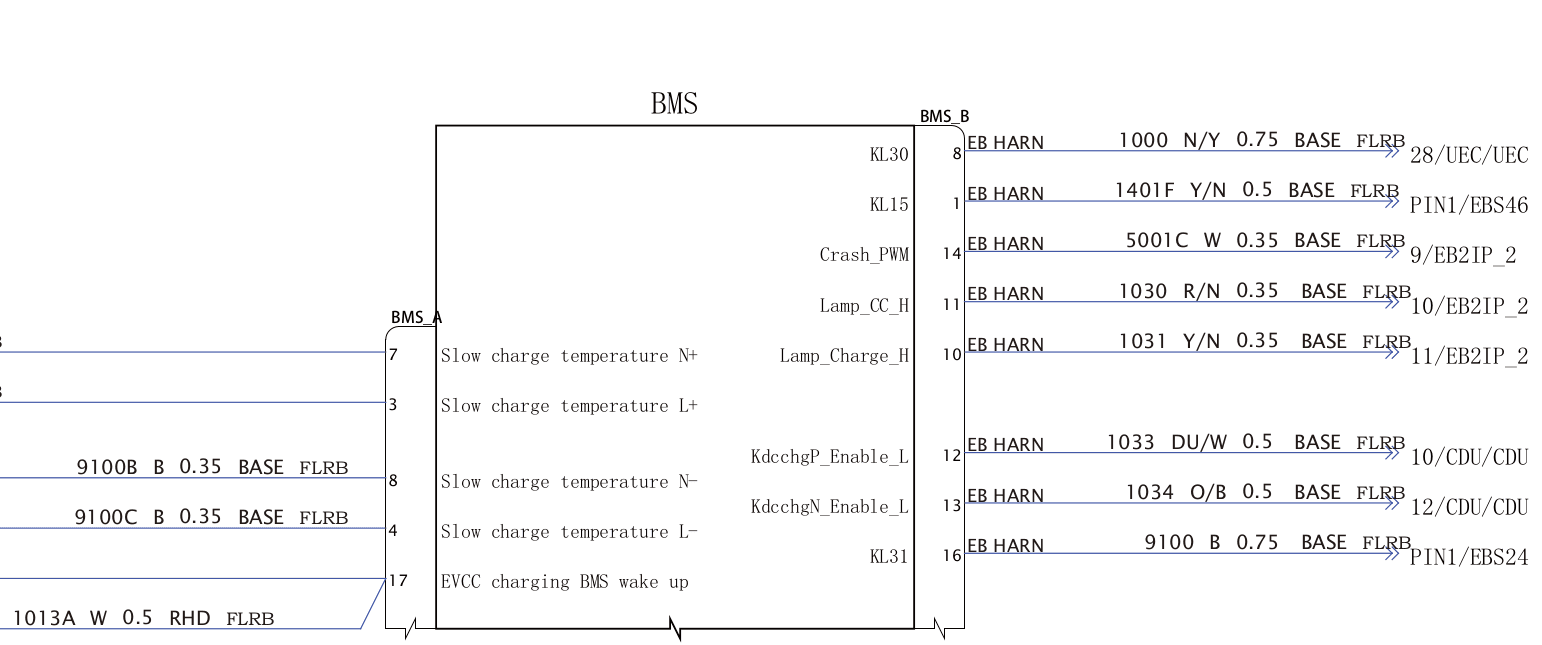

Apart from the HV plug, the BMS has two plugs "A" and "B", A seems to be responsible for charging, B for everything else. Service manual wiring attached, (PT CAN = PowerTrain CAN):


Other BMS connections image

The battery has an interlock on Connector B that needs to be shorted. image

How do I connect the battery to the Battery-Emulator?~

TODO

  • Connector B: Pin 3 to Pin 2 to satisfy interlock detection

High voltage wiring~

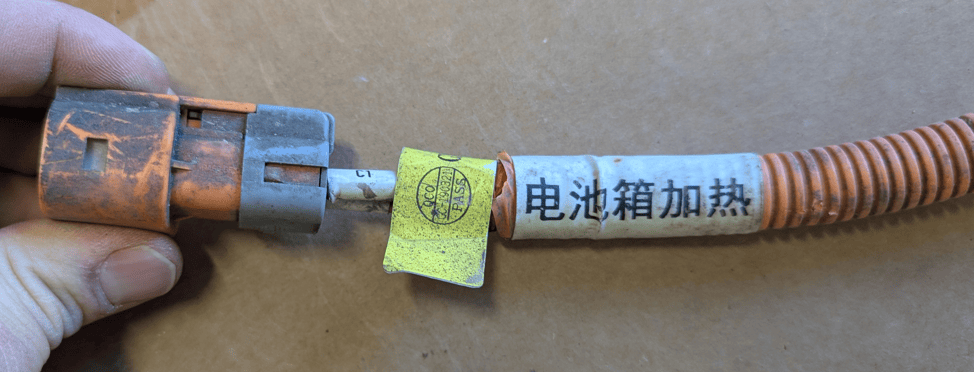

Cable for heater?


CAUTION

Working with high voltage is dangerous. Always follow local laws and regulations regarding high voltage work. If you are unsure about the rules in your country, consult a licensed electrician for more information.
